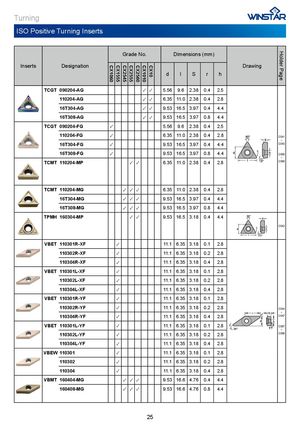

Брошюра Winstar пластины 2021 - страница 28

CX1060 CX1555 CX2545 CX2555 CX2560 CX1010 CX10 Holder Page Turning ISO Positive Turning Inserts Grade No. Dimensions (mm) Inserts Designation Drawing d l S r h TCGT 090204-AG ✓ ✓ 5.56 9.6 2.38 0.4 2.5 110204-AG ✓ ✓ 6.35 11.0 2.38 0.4 2.8 16T304-AG ✓ ✓ 9.53 16.5 3.97 0.4 4.4 16T308-AG ✓ ✓ 9.53 16.5 3.97 0.8 4.4 TCGT 090204-FG ✓ 5.56 9.6 2.38 0.4 2.5 110204-FG ✓ 6.35 11.0 2.38 0.4 2.8 C041 ~ 16T304-FG ✓ 9.53 16.5 3.97 0.4 4.4 C043 16T308-FG ✓ 9.53 16.5 3.97 0.8 4.4 C065 ~ TCMT 110204-MP ✓ ✓ 6.35 11.0 2.38 0.4 2.8 C066 TCMT 110204-MG ✓ ✓ ✓ 6.35 11.0 2.38 0.4 2.8 16T304-MG ✓ ✓ ✓ 9.53 16.5 3.97 0.4 4.4 16T308-MG ✓ ✓ ✓ 9.53 16.5 3.97 0.8 4.4 TPMH 160304-MP ✓ ✓ 9.53 16.5 3.18 0.4 4.4 C042 VBET 110301R-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304R-XF ✓ 11.1 6.35 3.18 0.4 2.8 VBET 110301L-XF ✓ 11.1 6.35 3.18 0.1 2.8 110302L-XF ✓ 11.1 6.35 3.18 0.2 2.8 110304L-XF ✓ 11.1 6.35 3.18 0.4 2.8 VBET 110301R-YF ✓ 11.1 6.35 3.18 0.1 2.8 110302R-YF ✓ 11.1 6.35 3.18 0.2 2.8 C044 ~ 110304R-YF ✓ 11.1 6.35 3.18 0.4 2.8 C047 VBET 110301L-YF ✓ 11.1 6.35 3.18 0.1 2.8 C067 ~ 110302L-YF ✓ 11.1 6.35 3.18 0.2 2.8 C068 110304L-YF ✓ 11.1 6.35 3.18 0.4 2.8 VBEW 110301 ✓ 11.1 6.35 3.18 0.1 2.8 110302 ✓ 11.1 6.35 3.18 0.2 2.8 110304 ✓ 11.1 6.35 3.18 0.4 2.8 VBMT 160404-MG ✓ ✓ ✓ 9.53 16.6 4.76 0.4 4.4 160408-MG ✓ ✓ ✓ 9.53 16.6 4.76 0.8 4.4 25
