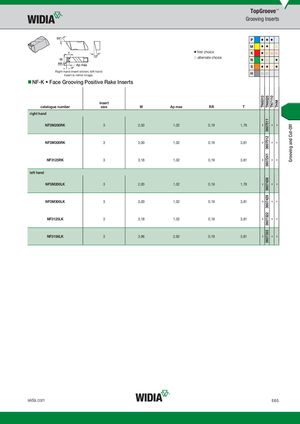

TN6010––––––– TN60253607511360751236072413607428360742936073223607333 TN7110––––––– THM––––––– Grooving and Cut-Off TopGroove™ Grooving Inserts P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ Right-hand insert shown; left-handinsert is mirror image. H ࠗ ࠗ „NF-K • Face Grooving Positive Rake Inserts insert catalogue number size W Ap max RR T right hand NF3M200RK 3 2,00 1,02 0,19 1,78 NF3M300RK 3 3,00 1,02 0,19 3,81 NF3125RK 3 3,18 1,02 0,19 3,81 left hand NF3M200LK 3 2,00 1,02 0,19 1,78 NF3M300LK 3 3,00 1,02 0,19 3,81 NF3125LK 3 3,18 1,02 0,19 3,81 NF3156LK 3 3,96 2,92 0,19 3,81 widia.com E65
