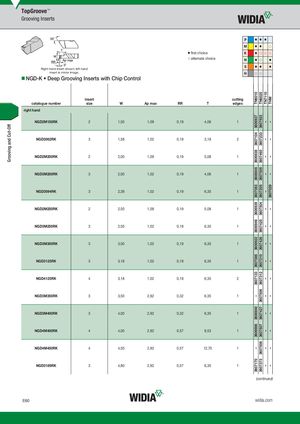

Grooving and Cut-Off TN60103606937360710436069383606945360708336069393606946360692236070883607133–36069403606986–3607170 TN6025360750336072333607465360750536072053607504360742536074263607210360731236075063607427360750736075083607373 TN7110––––––––––––––– THM––––3607029–––––––––– TopGroove™ Grooving Inserts P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ Right-hand insert shown; left-hand insert is mirror image. H ࠗ ࠗ NGD-K • Deep Grooving Inserts with Chip Control insert cutting catalogue number size W Ap max RR T edges right hand NGD2M150RK 2 1,50 1,09 0,19 4,06 1 NGD3062RK 3 1,58 1,02 0,19 3,18 2 NGD2M200RK 2 2,00 1,09 0,19 5,08 1 NGD3M200RK 3 2,00 1,02 0,19 4,06 1 NGD3094RK 3 2,39 1,02 0,19 6,35 1 NGD2M250RK 2 2,50 1,09 0,19 5,08 1 NGD3M250RK 3 2,50 1,02 0,19 6,35 1 NGD3M300RK 3 3,00 1,02 0,19 6,35 1 NGD3125RK 3 3,18 1,02 0,19 6,35 1 NGD4125RK 4 3,18 1,02 0,19 6,35 2 NGD3M350RK 3 3,50 2,92 0,32 6,35 1 NGD3M400RK 3 4,00 2,92 0,32 6,35 1 NGD4M400RK 4 4,00 2,92 0,57 9,53 1 NGD4M450RK 4 4,50 2,92 0,57 12,70 1 NGD3189RK 3 4,80 2,92 0,57 6,35 1 (continued) E60 widia.com
