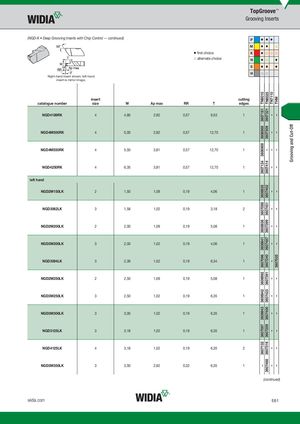

TN601036071613606988360698936071343606935360709836069363606941360709636069923606942360694336070973607132– TN602536073213607509–360741436074023607451360739936074873607240360739136074233607400360720936073163607488 TN7110––––––––––––––– THM––––––––3607035–––––– Grooving and Cut-Off TopGroove™ Grooving Inserts (NGD-K • Deep Grooving Inserts with Chip Control — continued) P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ H ࠗ ࠗ Right-hand insert shown; left-hand insert is mirror image. insert cutting catalogue number size W Ap max RR T edges NGD4189RK 4 4,80 2,92 0,57 9,53 1 NGD4M500RK 4 5,00 2,92 0,57 12,70 1 NGD4M550RK 4 5,50 3,81 0,57 12,70 1 NGD4250RK 4 6,35 3,81 0,57 12,70 1 left hand NGD2M150LK 2 1,50 1,09 0,19 4,06 1 NGD3062LK 3 1,58 1,02 0,19 3,18 2 NGD2M200LK 2 2,00 1,09 0,19 5,08 1 NGD3M200LK 3 2,00 1,02 0,19 4,06 1 NGD3094LK 3 2,39 1,02 0,19 6,34 1 NGD2M250LK 2 2,50 1,09 0,19 5,08 1 NGD3M250LK 3 2,50 1,02 0,19 6,35 1 NGD3M300LK 3 3,00 1,02 0,19 6,35 1 NGD3125LK 3 3,18 1,02 0,19 6,35 1 NGD4125LK 4 3,18 1,02 0,19 6,35 2 NGD3M350LK 3 3,50 2,92 0,32 6,35 1 (continued) widia.com E61
