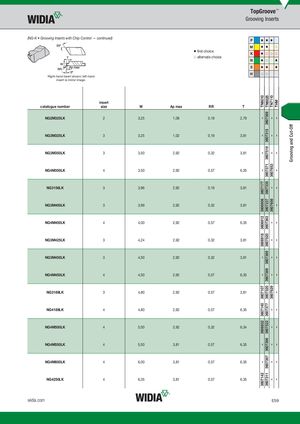

TN6010––––3607177360690636069123606918––360710736071403606832––3607142 TN60253607368360731536075193607371360733536072373607363360752036073693607389360732036073773607522360736636073873607311 TN7110–––3607653–3607656––––3607629––––– THM–––––––––––––––– Grooving and Cut-Off TopGroove™ Grooving Inserts (NG-K • Grooving Inserts with Chip Control — continued) P ⅷ ⅷ ⅷ M ⅷ ⅷ ࠗ ⅷ first choice K ⅷ ࠗ ࠗ ࠗ ࠗ alternate choice N ⅷ ࠗ ⅷ S ⅷ ⅷ ⅷ H ࠗ ࠗ Right-hand insert shown; left-hand insert is mirror image. insert catalogue number size W Ap max RR T NG2M325LK 2 3,25 1,09 0,19 2,79 NG3M325LK 3 3,25 1,02 0,19 3,81 NG3M350LK 3 3,50 2,92 0,32 3,81 NG4M350LK 4 3,50 2,92 0,57 6,35 NG3156LK 3 3,96 2,92 0,19 3,81 NG3M400LK 3 3,99 2,92 0,32 3,81 NG4M400LK 4 4,00 2,92 0,57 6,35 NG3M425LK 3 4,24 2,92 0,32 3,81 NG3M450LK 3 4,50 2,92 0,32 3,81 NG4M450LK 4 4,50 2,92 0,57 6,35 NG3189LK 3 4,80 2,92 0,57 3,81 NG4189LK 4 4,80 2,92 0,57 6,35 NG4M500LK 4 5,00 2,92 0,32 6,34 NG4M550LK 4 5,50 3,81 0,57 6,35 NG4M600LK 4 6,00 3,81 0,57 6,35 NG4250LK 4 6,35 3,81 0,57 6,35 widia.com E59
