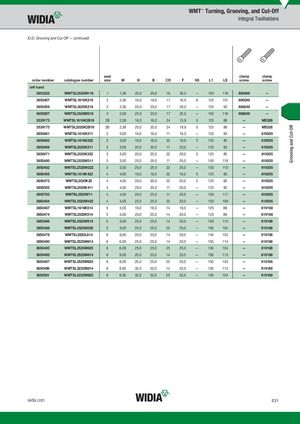

Grooving and Cut-Off WMT™ Turning, Grooving, and Cut-Off Integral Toolholders (O.D. Grooving and Cut-Off — continued) seat clamp clamp order number catalogue number size W H B CD F H3 L1 LS screw screw left hand 3653332 WMTSL2525M116 1 1,50 25,0 25,0 16 25,0 — 150 116 606249 — 3650457 WMTSL1616K216 2 2,00 16,0 16,0 17 16,0 6 125 101 606249 — 3650459 WMTSL2020K216 2 2,00 20,0 20,0 17 20,0 — 125 92 606249 — 3650507 WMTSL2525M216 2 2,00 25,0 25,0 17 25,0 — 150 116 606249 — 3539173 WMTSL1616K2B19 2B 2,38 16,0 16,0 24 15,9 5 125 88 — MS326 3539175 WMTSL2020K2B19 2B 2,38 20,0 20,0 24 19,9 5 125 88 — MS326 3650461 WMTSL1616K311 3 3,00 16,0 16,0 11 16,0 — 125 93 — 619205 3650463 WMTSL1616K322 3 3,00 16,0 16,0 22 16,0 5 125 85 — 619205 3650469 WMTSL2020K311 3 3,00 20,0 20,0 11 20,0 — 125 93 — 619205 3650471 WMTSL2020K322 3 3,00 20,0 20,0 22 20,0 5 125 85 — 619205 3650480 WMTSL2525M311 3 3,00 25,0 25,0 11 25,0 — 150 118 — 619205 3650482 WMTSL2525M322 3 3,00 25,0 25,0 22 25,0 — 150 110 — 619205 3650465 WMTSL1616K422 4 4,00 16,0 16,0 22 16,0 5 125 83 — 619205 3650472 WMTSL2020K22 4 4,00 20,0 20,0 22 20,0 5 125 83 — 619205 3650505 WMTSL2020K411 4 4,00 20,0 20,0 11 20,0 — 125 92 — 619205 3653763 WMTSL2525M11 4 4,00 25,0 25,0 11 25,0 — 150 117 — 619205 3650484 WMTSL2525M422 4 4,00 25,0 25,0 22 25,0 — 150 109 — 619205 3650467 WMTSL1616K514 5 5,00 16,0 16,0 14 16,0 — 125 88 — 619168 3650474 WMTSL2020K514 5 5,00 20,0 20,0 14 20,0 — 125 88 — 619168 3650486 WMTSL2525M514 5 5,00 25,0 25,0 14 25,0 — 150 113 — 619168 3650488 WMTSL2525M525 5 5,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650478 WMTSL2020L614 6 6,00 20,0 20,0 14 20,0 — 140 103 — 619168 3650490 WMTSL2525M614 6 6,00 25,0 25,0 14 25,0 — 150 114 — 619168 3650493 WMTSL2525M625 6 6,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650495 WMTSL2525M814 8 8,00 25,0 25,0 14 25,0 — 150 113 — 619168 3650497 WMTSL2525M825 8 8,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650499 WMTSL3232M814 8 8,00 32,0 32,0 14 32,0 — 150 113 — 619168 3650501 WMTSL3232M825 8 8,00 32,0 32,0 25 32,0 — 150 104 — 619168 widia.com E31
