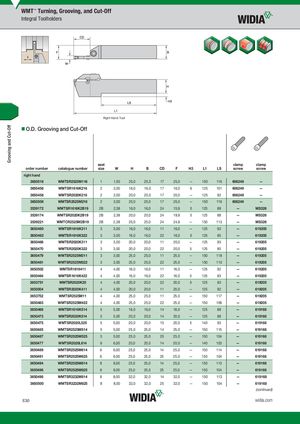

Grooving and Cut-Off WMT™ Turning, Grooving, and Cut-Off Integral Toolholders Right Hand Tool „O.D. Grooving and Cut-Off seat clamp clamp order number catalogue number size W H B CD F H3 L1 LS screw screw right hand 3650516 WMTSR2525M116 1 1,50 25,0 25,0 17 25,0 — 150 116 606249 — 3650456 WMTSR1616K216 2 2,00 16,0 16,0 17 16,0 6 125 101 606249 — 3650458 WMTSR2020K216 2 2,00 20,0 20,0 17 20,0 — 125 92 606249 — 3650506 WMTSR2525M216 2 2,00 25,0 25,0 17 25,0 — 150 116 606249 — 3539172 WMTSR1616K2B19 2B 2,38 16,0 16,0 24 15,9 5 125 88 — MS326 3539174 WMTSR2020K2B19 2B 2,38 20,0 20,0 24 19,9 5 125 88 — MS326 3539221 WMTCR2525M2B19 2B 2,38 25,0 25,0 24 24,9 — 150 113 — MS326 3650460 WMTSR1616K311 3 3,00 16,0 16,0 11 16,0 — 125 93 — 619205 3650462 WMTSR1616K322 3 3,00 16,0 16,0 22 16,0 5 125 85 — 619205 3650468 WMTSR2020K311 3 3,00 20,0 20,0 11 20,0 — 125 93 — 619205 3650470 WMTSR2020K322 3 3,00 20,0 20,0 22 20,0 5 125 85 — 619205 3650479 WMTSR2525M311 3 3,00 25,0 25,0 11 25,0 — 150 118 — 619205 3650481 WMTSR2525M322 3 3,00 25,0 25,0 22 25,0 — 150 110 — 619205 3650502 WMTSR1616411 4 4,00 16,0 16,0 11 16,0 — 125 92 — 619205 3650464 WMTSR1616K422 4 4,00 16,0 16,0 22 16,0 5 125 83 — 619205 3653751 WMTSR2020K20 4 4,00 20,0 20,0 22 20,0 5 125 83 — 619205 3650504 WMTSR2020K411 4 4,00 20,0 20,0 11 20,0 — 125 92 — 619205 3653752 WMTSR2525M11 4 4,00 25,0 25,0 11 25,0 — 150 117 — 619205 3650483 WMTSR2525M422 4 4,00 25,0 25,0 22 25,0 — 150 109 — 619205 3650466 WMTSR1616K514 5 5,00 16,0 16,0 14 16,0 — 125 88 — 619168 3650473 WMTSR2020K514 5 5,00 20,0 20,0 14 20,0 — 125 88 — 619168 3650475 WMTSR2020L525 5 5,00 20,0 20,0 15 20,0 5 140 93 — 619168 3650485 WMTSR2525M514 5 5,00 25,0 25,0 14 25,0 — 150 115 — 619168 3650487 WMTSR2525M525 5 5,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650477 WMTSR2020L614 6 6,00 20,0 20,0 14 20,0 — 140 103 — 619168 3650489 WMTSR2525M614 6 6,00 25,0 25,0 14 25,0 — 150 114 — 619168 3650491 WMTSR2525M625 6 6,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650494 WMTSR2525M814 8 8,00 25,0 25,0 14 25,0 — 150 113 — 619168 3650496 WMTSR2525M825 8 8,00 25,0 25,0 25 25,0 — 150 104 — 619168 3650498 WMTSR3232M814 8 8,00 32,0 32,0 14 32,0 — 150 113 — 619168 3650500 WMTSR3232M825 8 8,00 32,0 32,0 25 32,0 — 150 104 — 619168 (continued) E30 widia.com
