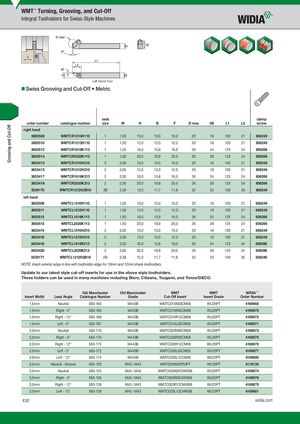

Grooving and Cut-Off WMT™ Turning, Grooving, and Cut-Off Integral Toolholders for Swiss-Style Machines Left Hand Tool „Swiss Grooving and Cut-Off • Metric seat clamp order number catalogue number size W H B F D max H2 L1 L2 screw right hand 3650508 WMTCR1010H110 1 1,50 10,0 10,0 10,0 20 16 100 21 606249 3650510 WMTCR1212H110 1 1,50 12,0 12,0 12,0 20 18 100 21 606249 3650512 WMTCR1616K113 1 1,50 16,0 15,9 16,0 26 24 125 24 606266 3650514 WMTCR2020K113 1 1,50 20,0 19,9 20,0 26 28 125 24 606266 3653413 WMTCR1010H210 2 2,00 10,0 10,0 10,0 20 16 100 21 606249 3653415 WMTCR1212H210 2 2,00 12,0 12,0 12,0 20 18 100 21 606249 3653417 WMTCR1616K213 2 2,00 16,0 15,8 16,0 26 24 125 24 606266 3653419 WMTCR2020K213 2 2,00 20,0 19,8 20,0 26 28 125 24 606266 3539170 WMTCR1212H2B16 2B 2,38 12,0 11,7 11,9 32 23 100 30 606249 left hand 3650509 WMTCL1010H110 1 1,50 10,0 10,0 10,0 20 16 100 21 606249 3650511 WMTCL1212H110 1 1,50 12,0 12,0 12,0 20 18 100 21 606249 3650513 WMTCL1616K113 1 1,50 16,0 15,9 16,0 26 24 125 24 606266 3650515 WMTCL2020K113 1 1,50 20,0 19,9 20,0 26 28 125 24 606266 3653414 WMTCL1010H210 2 2,00 10,0 10,0 10,0 20 16 100 21 606249 3653416 WMTCL1212H210 2 2,00 12,0 12,0 12,0 20 18 100 21 606249 3653418 WMTCL1616K213 2 2,00 16,0 15,8 16,0 26 24 125 24 606266 3653420 WMTCL2020K213 2 2,00 20,0 19,8 20,0 26 28 125 24 606266 3539171 WMTCL1212H2B16 2B 2,38 12,0 11,7 11,9 32 23 100 30 606249 NOTE: Insert exterior edge in line with toolholder edge for 10mm and 12mm shank toolholders. Update to our latest style cut-off inserts for use in the above style toolholders. These holders can be used in many machines including Stars, Citizens, Tsugami, and Tonos/DECO. Old Manchester Old Manchester WMT WMT WIDIA™ Insert Width Lead Angle Catalogue Number Grade Cut-Off Insert Insert Grade Order Number 1,5mm Neutral 583-165 M443B WMTC015N00CM08 WU25PT 4169668 1,5mm Right - 5° 583-166 M443B WMTC015R05CM08 WU25PT 4169670 1,5mm Right - 12° 583-168 M443B WMTC015R12CM08 WU25PT 4169672 1,5mm Left - 5° 583-167 M443B WMTC015L05CM08 WU25PT 4169671 2,0mm Neutral 583-170 M443B WMTC020N00CM08 WU25PT 4169673 2,0mm Right - 5° 583-170 M443B WMTC020R05CM08 WU25PT 4169675 2,0mm Right - 12° 583-173 M443B WMTC020R12CM08 WU25PT 4169678 2,0mm Left - 5° 583-172 M443B WMTC020L05CM08 WU25PT 4169677 2,0mm Left - 12° 583-174 M443B WMTC020L12CM08 WU25PT 4169680 2,0mm Neutral - Groove 583-129 M45 / M43 WMTS200M2P02PT WU25PT 4116130 2,0mm Neutral 583-125 M45 / M43 WMTC020N00CMW08 WU25PT 4169674 2,0mm Right - 5° 583-126 M45 / M43 WMTC020R05CMW08 WU25PT 4169676 2,0mm Right - 12° 583-128 M45 / M43 WMTC020R12CMW08 WU25PT 4169679 2,0mm Left - 12° 583-129 M45 / M43 WMTC020L12CMW08 WU25PT 4169681 E32 widia.com
