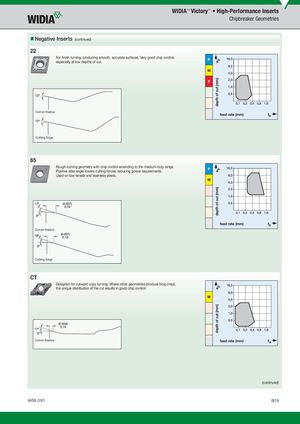

apdepth of cut (mm)apdepth of cut (mm)apdepth of cut (mm) WIDIA™ Victory™ • High-Performance Inserts Chipbreaker Geometries „Negative Inserts (continued) 22 For finish turning, producing smooth, accurate surfaces. Very good chip control,especially at low depths of cut.P M K Corner Radius feed rate (mm) fn Cutting Edge 65 Rough-turning geometry with chip control extending to the medium-duty range.Positive rake angle lowers cutting forces, reducing power requirements.P Used on low-tensile and stainless steels. M feed rate (mm) fn Corner Radius Cutting Edge CT Designed for outward copy turning. Where other geometries produce long chips, the unique distribution of the cut results in good chip control. M Corner Radius feed rate (mm) fn (continued) widia.com B19
