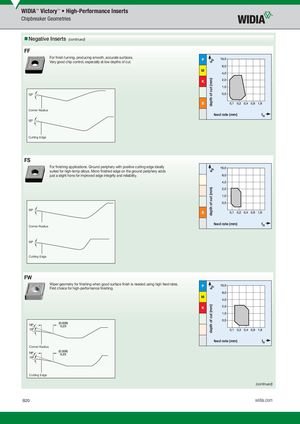

apdepth of cut (mm)apdepth of cut (mm)apdepth of cut (mm) WIDIA™ Victory™ • High-Performance Inserts Chipbreaker Geometries „Negative Inserts (continued) FF For finish turning, producing smooth, accurate surfaces.Very good chip control, especially at low depths of cut.P M K S Corner Radius feed rate (mm) fn Cutting Edge FS For finishing applications. Ground periphery with positive cutting edge ideally suited for high-temp alloys. Micro finished edge on the ground periphery adds just a slight hone for improved edge integrity and reliability. S Corner Radius feed rate (mm) fn Cutting Edge FW Wiper geometry for finishing when good surface finish is needed using high feed rates.First choice for high-performance finishing.P M K feed rate (mm) fn Corner Radius Cutting Edge (continued) B20 widia.com
