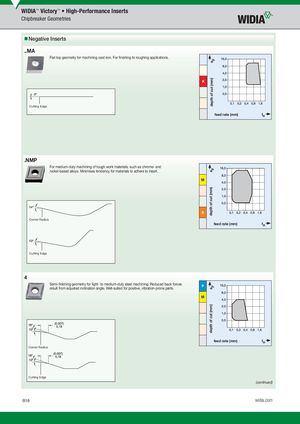

apdepth of cut (mm)apdepth of cut (mm)apdepth of cut (mm) WIDIA™ Victory™ • High-Performance Inserts Chipbreaker Geometries „Negative Inserts ..MA Flat top geometry for machining cast iron. For finishing to roughing applications. K Cutting Edge feed rate (mm) fn .NMP For medium-duty machining of tough work materials, such as chrome- and nickel-based alloys. Minimises tendency for materials to adhere to insert. M S Corner Radius feed rate (mm) fn Cutting Edge 4 Semi-finishing geometry for light- to medium-duty steel machining. Reduced back forcesresult from adjusted inclination angle. Well-suited for positive, vibration-prone parts.P M feed rate (mm) fn Corner Radius Cutting Edge (continued) B18 widia.com
