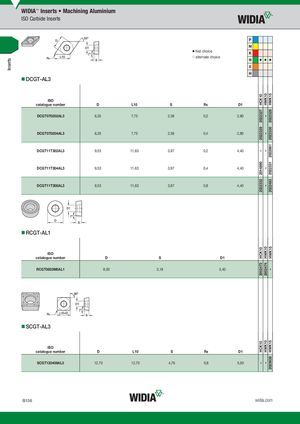

Inserts HCK1020223272022329–20148902022332HCK102002473HCK10– HWK10–––––HWK102002474HWK10– HWK1520223282022330202286120223312022483HWK15–HWK152023638 WIDIA™ Inserts • Machining Aluminium ISO Carbide Inserts P M ⅷ first choice K ࠗ alternate choice N ⅷ ⅷ ⅷ S H „DCGT-AL3 ISO catalogue number D L10 S R¡ D1 DCGT070202AL3 6,35 7,75 2,38 0,2 2,80 DCGT070204AL3 6,35 7,75 2,38 0,4 2,80 DCGT11T302AL3 9,53 11,63 3,97 0,2 4,40 DCGT11T304AL3 9,53 11,63 3,97 0,4 4,40 DCGT11T308AL3 9,53 11,63 3,97 0,8 4,40 „RCGT-AL1 ISO catalogue number D S D1 RCGT0803M0AL1 8,00 3,18 3,40 „SCGT-AL3 ISO catalogue number D L10 S R¡ D1 SCGT120408AL3 12,70 12,70 4,76 0,8 5,50 B156 widia.com
