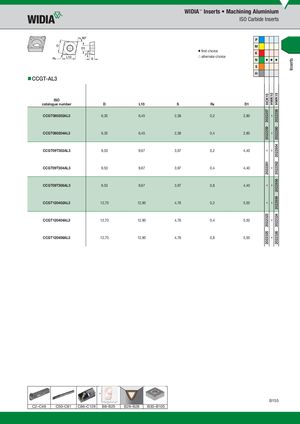

HCK1020222572022259–2022261––20223232022325 HWK10–––––––– HWK1520222582022260202285420222622022858202285920223242022326 Inserts WIDIA™ Inserts • Machining Aluminium ISO Carbide Inserts P M ⅷ first choice K ࠗ alternate choice N ⅷ ⅷ ⅷ S H „CCGT-AL3 ISO catalogue number D L10 S R¡ D1 CCGT060202AL3 6,35 6,45 2,38 0,2 2,80 CCGT060204AL3 6,35 6,45 2,38 0,4 2,80 CCGT09T302AL3 9,53 9,67 3,97 0,2 4,40 CCGT09T304AL3 9,53 9,67 3,97 0,4 4,40 CCGT09T308AL3 9,53 9,67 3,97 0,8 4,40 CCGT120402AL3 12,70 12,90 4,76 0,2 5,50 CCGT120404AL3 12,70 12,90 4,76 0,4 5,50 CCGT120408AL3 12,70 12,90 4,76 0,8 5,50 B155 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
