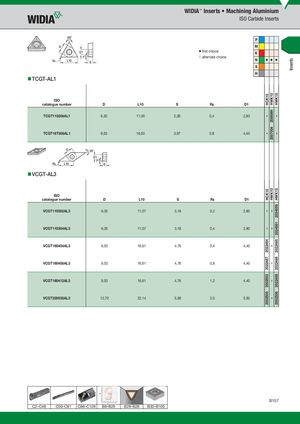

HCK10––HCK10––2022484202248720025032002505 HWK1020069912007004HWK10–––––– HWK15––HWK15202455920245612022485202248820224892002506 Inserts WIDIA™ Inserts • Machining Aluminium ISO Carbide Inserts P M ⅷ first choice K ࠗ alternate choice N ⅷ ⅷ ⅷ S H „TCGT-AL1 ISO catalogue number D L10 S R¡ D1 TCGT110204AL1 6,35 11,00 2,38 0,4 2,80 TCGT16T308AL1 9,53 16,50 3,97 0,8 4,40 „VCGT-AL3 ISO catalogue number D L10 S R¡ D1 VCGT110302AL3 6,35 11,07 3,18 0,2 2,80 VCGT110304AL3 6,35 11,07 3,18 0,4 2,80 VCGT160404AL3 9,53 16,61 4,76 0,4 4,40 VCGT160408AL3 9,53 16,61 4,76 0,8 4,40 VCGT160412AL3 9,53 16,61 4,76 1,2 4,40 VCGT220530AL3 12,70 22,14 5,56 3,0 5,50 B157 C2–C49 C50–C81 C86–C129 B8–B25 B26–B28 B30–B105
