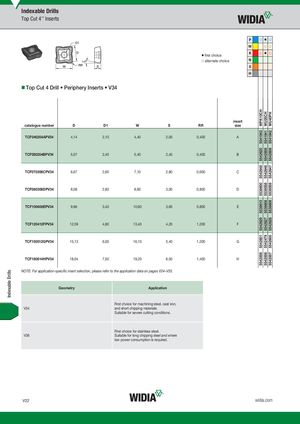

Indexable Drills WPK10CH55418435542620554264855386005538610554262955426015542008 WU25CH55418415542608554264655385585538608554262755424795542006 WU40PH55418425542609554264755385595538609554262855426005542007 Indexable Drills Top Cut 4™ Inserts P ࠗ ⅷ ࠗ M ࠗ ࠗ ⅷ first choice K ࠗ ⅷ ࠗ ࠗ alternate choice N S H „Top Cut 4 Drill • Periphery Inserts • V34 insert catalogue number D D1 W S RR size TCF040204APV34 4,14 2,10 4,40 2,00 0,400 A TCF050204BPV34 5,07 2,40 5,40 2,40 0,400 B TCF070306CPV34 6,67 2,60 7,10 2,80 0,600 C TCF080308DPV34 8,08 2,80 8,60 3,00 0,800 D TCF100408EPV34 9,96 3,40 10,60 3,60 0,800 E TCF120412FPV34 12,59 4,80 13,40 4,20 1,200 F TCF150512GPV34 15,13 6,00 16,10 5,40 1,200 G TCF180614HPV34 18,04 7,50 19,20 6,50 1,400 H NOTE: For application-specific insert selection, please refer to the application data on pages V24–V35. Geometry Application First choice for machining steel, cast iron, V34 and short chipping materials. Suitable for severe cutting conditions. First choice for stainless steel. V36 Suitable for long chipping steel and where low power consumption is required. V22 widia.com
