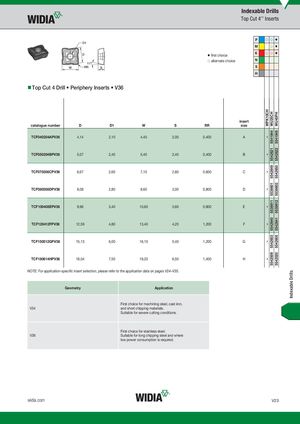

WPK10CH–––––––– WU25CH55418445542621554264955386015538611554264055426035542009 WU40PH55418455542622554265055386025538612554264155426055542020 Indexable Drills Indexable Drills Top Cut 4™ Inserts P ࠗ ࠗ ⅷ M ࠗ ⅷ ⅷ first choice K ࠗ ࠗ ⅷ ࠗ alternate choice N S H „Top Cut 4 Drill • Periphery Inserts • V36 insert catalogue number D D1 W S RR size TCF040204APV36 4,14 2,10 4,40 2,00 0,400 A TCF050204BPV36 5,07 2,40 5,40 2,40 0,400 B TCF070306CPV36 6,67 2,60 7,10 2,80 0,600 C TCF080308DPV36 8,08 2,80 8,60 3,00 0,800 D TCF100408EPV36 9,96 3,40 10,60 3,60 0,800 E TCF120412FPV36 12,59 4,80 13,40 4,20 1,200 F TCF150512GPV36 15,13 6,00 16,10 5,40 1,200 G TCF180614HPV36 18,04 7,50 19,20 6,50 1,400 H NOTE: For application-specific insert selection, please refer to the application data on pages V24–V35. Geometry Application First choice for machining steel, cast iron, V34 and short chipping materials. Suitable for severe cutting conditions. First choice for stainless steel. V36 Suitable for long chipping steel and where low power consumption is required. widia.com V23
