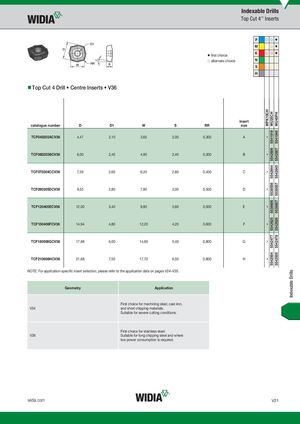

WPK10CH–––––––– WU25CH55418195542606554264455385565538606554262555424775542004 WU40PH55418405542607554264555385575538607554262655424785542005 Indexable Drills Indexable Drills Top Cut 4™ Inserts P ࠗ ࠗ ⅷ M ࠗ ⅷ ⅷ first choice K ࠗ ࠗ ⅷ ࠗ alternate choice N S H „Top Cut 4 Drill • Centre Inserts • V36 insert catalogue number D D1 W S RR size TCF040203ACV36 4,47 2,10 3,65 2,00 0,300 A TCF060203BCV36 6,00 2,40 4,90 2,40 0,300 B TCF070304CCV36 7,59 2,60 6,20 2,80 0,400 C TCF090305DCV36 9,55 2,80 7,80 3,00 0,500 D TCF120405ECV36 12,00 3,40 9,80 3,60 0,500 E TCF150406FCV36 14,94 4,80 12,20 4,20 0,600 F TCF180508GCV36 17,88 6,00 14,60 5,40 0,800 G TCF210608HCV36 21,68 7,50 17,70 6,50 0,800 H NOTE: For application-specific insert selection, please refer to the application data on pages V24–V35. Geometry Application First choice for machining steel, cast iron, V34 and short chipping materials. Suitable for severe cutting conditions. First choice for stainless steel. V36 Suitable for long chipping steel and where low power consumption is required. widia.com V21
