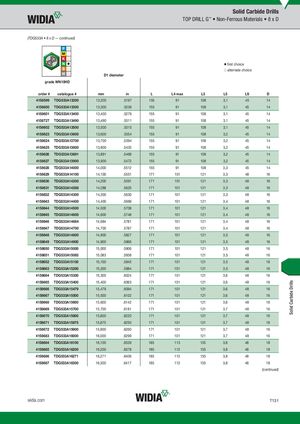

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D (TDG533A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158599 TDG533A13200 13,200 .5197 155 91 108 3,1 45 14 4158600 TDG533A13300 13,300 .5236 155 91 108 3,1 45 14 4158601 TDG533A13400 13,400 .5276 155 91 108 3,1 45 14 4158727 TDG533A13490 13,490 .5311 155 91 108 3,1 45 14 4158602 TDG533A13500 13,500 .5315 155 91 108 3,1 45 14 4158623 TDG533A13600 13,600 .5354 155 91 108 3,2 45 14 4158624 TDG533A13700 13,700 .5394 155 91 108 3,2 45 14 4158625 TDG533A13800 13,800 .5433 155 91 108 3,2 45 14 4158626 TDG533A13891 13,891 .5469 155 91 108 3,2 45 14 4158627 TDG533A13900 13,900 .5472 155 91 108 3,2 45 14 4158628 TDG533A14000 14,000 .5512 155 91 108 3,3 45 14 4158629 TDG533A14100 14,100 .5551 171 101 121 3,3 48 16 4158630 TDG533A14200 14,200 .5591 171 101 121 3,3 48 16 4158631 TDG533A14288 14,288 .5625 171 101 121 3,3 48 16 4158632 TDG533A14300 14,300 .5630 171 101 121 3,3 48 16 4158643 TDG533A14400 14,400 .5669 171 101 121 3,4 48 16 4158644 TDG533A14500 14,500 .5709 171 101 121 3,4 48 16 4158645 TDG533A14600 14,600 .5748 171 101 121 3,4 48 16 4158646 TDG533A14684 14,684 .5781 171 101 121 3,4 48 16 4158647 TDG533A14700 14,700 .5787 171 101 121 3,4 48 16 4158648 TDG533A14800 14,800 .5827 171 101 121 3,5 48 16 4158649 TDG533A14900 14,900 .5866 171 101 121 3,5 48 16 4158650 TDG533A15000 15,000 .5906 171 101 121 3,5 48 16 4158651 TDG533A15083 15,083 .5938 171 101 121 3,5 48 16 4158652 TDG533A15100 15,100 .5945 171 101 121 3,5 48 16 4158663 TDG533A15200 15,200 .5984 171 101 121 3,5 48 16 4158664 TDG533A15300 15,300 .6024 171 101 121 3,6 48 16 4158665 TDG533A15400 15,400 .6063 171 101 121 3,6 48 16 4158666 TDG533A15479 15,479 .6094 171 101 121 3,6 48 16 4158667 TDG533A15500 15,500 .6102 171 101 121 3,6 48 16 4158668 TDG533A15600 15,600 .6142 171 101 121 3,6 48 16 4158669 TDG533A15700 15,700 .6181 171 101 121 3,7 48 16 4158670 TDG533A15800 15,800 .6220 171 101 121 3,7 48 16 4158671 TDG533A15875 15,875 .6250 171 101 121 3,7 48 16 4158672 TDG533A15900 15,900 .6260 171 101 121 3,7 48 16 4158683 TDG533A16000 16,000 .6299 171 101 121 3,7 48 16 4158684 TDG533A16100 16,100 .6339 185 113 135 3,8 48 18 4158685 TDG533A16200 16,200 .6378 185 113 135 3,8 48 18 4158686 TDG533A16271 16,271 .6406 185 113 135 3,8 48 18 4158687 TDG533A16300 16,300 .6417 185 113 135 3,8 48 18 (continued) widia.com T131 Solid Carbide Drills
