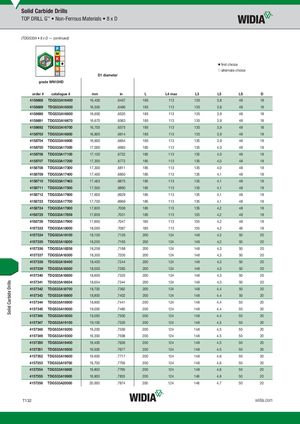

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D (TDG533A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158688 TDG533A16400 16,400 .6457 185 113 135 3,8 48 18 4158689 TDG533A16500 16,500 .6496 185 113 135 3,8 48 18 4158690 TDG533A16600 16,600 .6535 185 113 135 3,9 48 18 4158691 TDG533A16670 16,670 .6563 185 113 135 3,9 48 18 4158692 TDG533A16700 16,700 .6575 185 113 135 3,9 48 18 4158703 TDG533A16800 16,800 .6614 185 113 135 3,9 48 18 4158704 TDG533A16900 16,900 .6654 185 113 135 3,9 48 18 4158705 TDG533A17000 17,000 .6693 185 113 135 4,0 48 18 4158706 TDG533A17100 17,100 .6732 185 113 135 4,0 48 18 4158707 TDG533A17200 17,200 .6772 185 113 135 4,0 48 18 4158708 TDG533A17300 17,300 .6811 185 113 135 4,0 48 18 4158709 TDG533A17400 17,400 .6850 185 113 135 4,1 48 18 4158710 TDG533A17463 17,463 .6875 185 113 135 4,1 48 18 4158711 TDG533A17500 17,500 .6890 185 113 135 4,1 48 18 4158712 TDG533A17600 17,600 .6929 185 113 135 4,1 48 18 4158723 TDG533A17700 17,700 .6969 185 113 135 4,1 48 18 4158724 TDG533A17800 17,800 .7008 185 113 135 4,2 48 18 4158725 TDG533A17859 17,859 .7031 185 113 135 4,2 48 18 4158726 TDG533A17900 17,900 .7047 185 113 135 4,2 48 18 4157333 TDG533A18000 18,000 .7087 185 113 135 4,2 48 18 4157334 TDG533A18100 18,100 .7126 200 124 148 4,2 50 20 4157335 TDG533A18200 18,200 .7165 200 124 148 4,2 50 20 4157336 TDG533A18258 18,258 .7188 200 124 148 4,3 50 20 4157337 TDG533A18300 18,300 .7205 200 124 148 4,3 50 20 4157338 TDG533A18400 18,400 .7244 200 124 148 4,3 50 20 4157339 TDG533A18500 18,500 .7283 200 124 148 4,3 50 20 4157340 TDG533A18600 18,600 .7323 200 124 148 4,3 50 20 4157341 TDG533A18654 18,654 .7344 200 124 148 4,3 50 20 4157342 TDG533A18700 18,700 .7362 200 124 148 4,4 50 20 4157343 TDG533A18800 18,800 .7402 200 124 148 4,4 50 20 4157344 TDG533A18900 18,900 .7441 200 124 148 4,4 50 20 4157345 TDG533A19000 19,000 .7480 200 124 148 4,4 50 20 4157346 TDG533A19050 19,050 .7500 200 124 148 4,4 50 20 4157347 TDG533A19100 19,100 .7520 200 124 148 4,5 50 20 4157348 TDG533A19200 19,200 .7559 200 124 148 4,5 50 20 4157349 TDG533A19300 19,300 .7598 200 124 148 4,5 50 20 4157350 TDG533A19400 19,400 .7638 200 124 148 4,5 50 20 4157351 TDG533A19500 19,500 .7677 200 124 148 4,5 50 20 4157352 TDG533A19600 19,600 .7717 200 124 148 4,6 50 20 4157353 TDG533A19700 19,700 .7756 200 124 148 4,6 50 20 4157354 TDG533A19800 19,800 .7795 200 124 148 4,6 50 20 4157355 TDG533A19900 19,900 .7835 200 124 148 4,6 50 20 4157356 TDG533A20000 20,000 .7874 200 124 148 4,7 50 20 T132 widia.com Solid Carbide Drills
