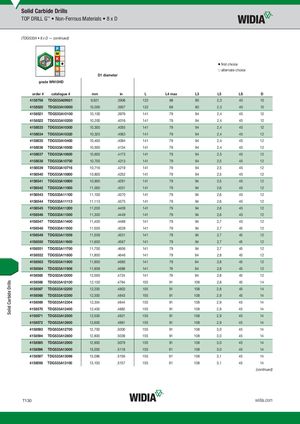

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D (TDG533A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158756 TDG533A09921 9,921 .3906 122 68 80 2,3 40 10 4158520 TDG533A10000 10,000 .3937 122 68 80 2,3 40 10 4158521 TDG533A10100 10,100 .3976 141 79 94 2,4 45 12 4158522 TDG533A10200 10,200 .4016 141 79 94 2,4 45 12 4158533 TDG533A10300 10,300 .4055 141 79 94 2,4 45 12 4158534 TDG533A10320 10,320 .4063 141 79 94 2,4 45 12 4158535 TDG533A10400 10,400 .4094 141 79 94 2,4 45 12 4158536 TDG533A10500 10,500 .4134 141 79 94 2,4 45 12 4158537 TDG533A10600 10,600 .4173 141 79 94 2,5 45 12 4158538 TDG533A10700 10,700 .4213 141 79 94 2,5 45 12 4158539 TDG533A10716 10,716 .4219 141 79 94 2,5 45 12 4158540 TDG533A10800 10,800 .4252 141 79 94 2,5 45 12 4158541 TDG533A10900 10,900 .4291 141 79 94 2,5 45 12 4158542 TDG533A11000 11,000 .4331 141 79 94 2,6 45 12 4158543 TDG533A11100 11,100 .4370 141 79 94 2,6 45 12 4158544 TDG533A11113 11,113 .4375 141 79 94 2,6 45 12 4158545 TDG533A11200 11,200 .4409 141 79 94 2,6 45 12 4158546 TDG533A11300 11,300 .4449 141 79 94 2,6 45 12 4158547 TDG533A11400 11,400 .4488 141 79 94 2,7 45 12 4158548 TDG533A11500 11,500 .4528 141 79 94 2,7 45 12 4158549 TDG533A11509 11,509 .4531 141 79 94 2,7 45 12 4158550 TDG533A11600 11,600 .4567 141 79 94 2,7 45 12 4158551 TDG533A11700 11,700 .4606 141 79 94 2,7 45 12 4158552 TDG533A11800 11,800 .4646 141 79 94 2,8 45 12 4158563 TDG533A11900 11,900 .4685 141 79 94 2,8 45 12 4158564 TDG533A11908 11,908 .4688 141 79 94 2,8 45 12 4158565 TDG533A12000 12,000 .4724 141 79 94 2,8 45 12 4158566 TDG533A12100 12,100 .4764 155 91 108 2,8 45 14 4158567 TDG533A12200 12,200 .4803 155 91 108 2,8 45 14 4158568 TDG533A12300 12,300 .4843 155 91 108 2,9 45 14 4158569 TDG533A12304 12,304 .4844 155 91 108 2,9 45 14 4158570 TDG533A12400 12,400 .4882 155 91 108 2,9 45 14 4158571 TDG533A12500 12,500 .4921 155 91 108 2,9 45 14 4158572 TDG533A12600 12,600 .4961 155 91 108 2,9 45 14 4158593 TDG533A12700 12,700 .5000 155 91 108 3,0 45 14 4158594 TDG533A12800 12,800 .5039 155 91 108 3,0 45 14 4158595 TDG533A12900 12,900 .5079 155 91 108 3,0 45 14 4158596 TDG533A13000 13,000 .5118 155 91 108 3,0 45 14 4158597 TDG533A13096 13,096 .5156 155 91 108 3,1 45 14 4158598 TDG533A13100 13,100 .5157 155 91 108 3,1 45 14 (continued) T130 widia.com Solid Carbide Drills
