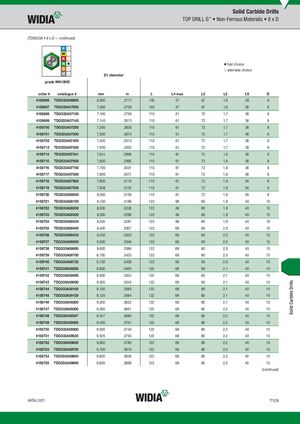

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D (TDG533A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158696 TDG533A06900 6,900 .2717 105 57 67 1,6 36 8 4158697 TDG533A07000 7,000 .2756 105 57 67 1,6 36 8 4158698 TDG533A07100 7,100 .2795 110 61 72 1,7 36 8 4158699 TDG533A07145 7,145 .2813 110 61 72 1,7 36 8 4158700 TDG533A07200 7,200 .2835 110 61 72 1,7 36 8 4158701 TDG533A07300 7,300 .2874 110 61 72 1,7 36 8 4158702 TDG533A07400 7,400 .2913 110 61 72 1,7 36 8 4158713 TDG533A07500 7,500 .2953 110 61 72 1,7 36 8 4158714 TDG533A07541 7,541 .2969 110 61 72 1,8 36 8 4158715 TDG533A07600 7,600 .2992 110 61 72 1,8 36 8 4158716 TDG533A07700 7,700 .3031 110 61 72 1,8 36 8 4158717 TDG533A07800 7,800 .3071 110 61 72 1,8 36 8 4158718 TDG533A07900 7,900 .3110 110 61 72 1,8 36 8 4158719 TDG533A07938 7,938 .3125 110 61 72 1,9 36 8 4158720 TDG533A08000 8,000 .3150 110 61 72 1,9 36 8 4158721 TDG533A08100 8,100 .3189 122 68 80 1,9 40 10 4158722 TDG533A08200 8,200 .3228 122 68 80 1,9 40 10 4158733 TDG533A08300 8,300 .3268 122 68 80 1,9 40 10 4158734 TDG533A08334 8,334 .3281 122 68 80 1,9 40 10 4158735 TDG533A08400 8,400 .3307 122 68 80 2,0 40 10 4158736 TDG533A08433 8,433 .3320 122 68 80 2,0 40 10 4158737 TDG533A08500 8,500 .3346 122 68 80 2,0 40 10 4158738 TDG533A08600 8,600 .3386 122 68 80 2,0 40 10 4158739 TDG533A08700 8,700 .3425 122 68 80 2,0 40 10 4158740 TDG533A08733 8,733 .3438 122 68 80 2,0 40 10 4158741 TDG533A08800 8,800 .3465 122 68 80 2,1 40 10 4158742 TDG533A08900 8,900 .3504 122 68 80 2,1 40 10 4158743 TDG533A09000 9,000 .3543 122 68 80 2,1 40 10 4158744 TDG533A09100 9,100 .3583 122 68 80 2,1 40 10 4158745 TDG533A09129 9,129 .3594 122 68 80 2,1 40 10 4158746 TDG533A09200 9,200 .3622 122 68 80 2,1 40 10 4158747 TDG533A09300 9,300 .3661 122 68 80 2,2 40 10 4158748 TDG533A09347 9,347 .3680 122 68 80 2,2 40 10 4158749 TDG533A09400 9,400 .3701 122 68 80 2,2 40 10 4158750 TDG533A09500 9,500 .3740 122 68 80 2,2 40 10 4158751 TDG533A09525 9,525 .3750 122 68 80 2,2 40 10 4158752 TDG533A09600 9,600 .3780 122 68 80 2,2 40 10 4158753 TDG533A09700 9,700 .3819 122 68 80 2,3 40 10 4158754 TDG533A09800 9,800 .3858 122 68 80 2,3 40 10 4158755 TDG533A09900 9,900 .3898 122 68 80 2,3 40 10 (continued) widia.com T129 Solid Carbide Drills
