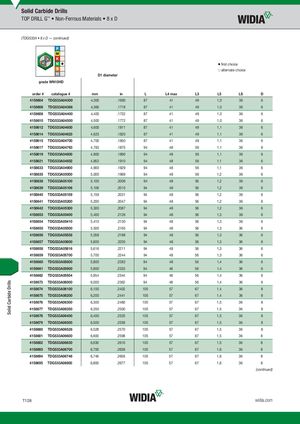

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D (TDG533A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158604 TDG533A04300 4,300 .1693 87 41 49 1,0 36 6 4158606 TDG533A04366 4,366 .1719 87 41 49 1,0 36 6 4158608 TDG533A04400 4,400 .1732 87 41 49 1,0 36 6 4158610 TDG533A04500 4,500 .1772 87 41 49 1,0 36 6 4158612 TDG533A04600 4,600 .1811 87 41 49 1,1 36 6 4158614 TDG533A04623 4,623 .1820 87 41 49 1,1 36 6 4158615 TDG533A04700 4,700 .1850 87 41 49 1,1 36 6 4158617 TDG533A04763 4,763 .1875 94 48 56 1,1 36 6 4158619 TDG533A04800 4,800 .1890 94 48 56 1,1 36 6 4158621 TDG533A04852 4,852 .1910 94 48 56 1,1 36 6 4158633 TDG533A04900 4,900 .1929 94 48 56 1,1 36 6 4158635 TDG533A05000 5,000 .1969 94 48 56 1,2 36 6 4158638 TDG533A05100 5,100 .2008 94 48 56 1,2 36 6 4158639 TDG533A05106 5,106 .2010 94 48 56 1,2 36 6 4158640 TDG533A05159 5,159 .2031 94 48 56 1,2 36 6 4158641 TDG533A05200 5,200 .2047 94 48 56 1,2 36 6 4158642 TDG533A05300 5,300 .2087 94 48 56 1,2 36 6 4158653 TDG533A05400 5,400 .2126 94 48 56 1,3 36 6 4158654 TDG533A05410 5,410 .2130 94 48 56 1,3 36 6 4158655 TDG533A05500 5,500 .2165 94 48 56 1,3 36 6 4158656 TDG533A05558 5,558 .2188 94 48 56 1,3 36 6 4158657 TDG533A05600 5,600 .2205 94 48 56 1,3 36 6 4158658 TDG533A05616 5,616 .2211 94 48 56 1,3 36 6 4158659 TDG533A05700 5,700 .2244 94 48 56 1,3 36 6 4158660 TDG533A05800 5,800 .2283 94 48 56 1,4 36 6 4158661 TDG533A05900 5,900 .2323 94 48 56 1,4 36 6 4158662 TDG533A05954 5,954 .2344 94 48 56 1,4 36 6 4158673 TDG533A06000 6,000 .2362 94 48 56 1,4 36 6 4158674 TDG533A06100 6,100 .2402 105 57 67 1,4 36 8 4158675 TDG533A06200 6,200 .2441 105 57 67 1,4 36 8 4158676 TDG533A06300 6,300 .2480 105 57 67 1,5 36 8 4158677 TDG533A06350 6,350 .2500 105 57 67 1,5 36 8 4158678 TDG533A06400 6,400 .2520 105 57 67 1,5 36 8 4158679 TDG533A06500 6,500 .2559 105 57 67 1,5 36 8 4158680 TDG533A06528 6,528 .2570 105 57 67 1,5 36 8 4158681 TDG533A06600 6,600 .2598 105 57 67 1,5 36 8 4158682 TDG533A06630 6,630 .2610 105 57 67 1,5 36 8 4158693 TDG533A06700 6,700 .2638 105 57 67 1,6 36 8 4158694 TDG533A06746 6,746 .2656 105 57 67 1,6 36 8 4158695 TDG533A06800 6,800 .2677 105 57 67 1,6 36 8 (continued) T128 widia.com Solid Carbide Drills
