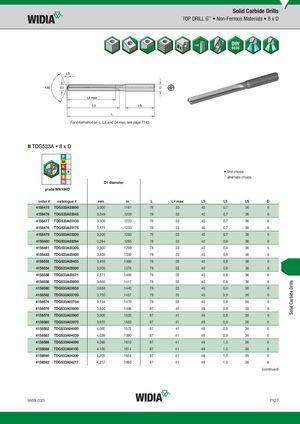

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 8 x D For information on L, L3, and L4 max, see page T143. „TDG533A • 8 x D ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158475 TDG533A03000 3,000 .1181 78 33 40 0,7 36 6 4158476 TDG533A03048 3,048 .1200 78 33 40 0,7 36 6 4158477 TDG533A03100 3,100 .1220 78 33 40 0,7 36 6 4158478 TDG533A03175 3,175 .1250 78 33 40 0,7 36 6 4158479 TDG533A03200 3,200 .1260 78 33 40 0,7 36 6 4158480 TDG533A03264 3,264 .1285 78 33 40 0,8 36 6 4158481 TDG533A03300 3,300 .1299 78 33 40 0,8 36 6 4158482 TDG533A03400 3,400 .1339 78 33 40 0,8 36 6 4158553 TDG533A03455 3,455 .1360 78 33 40 0,8 36 6 4158554 TDG533A03500 3,500 .1378 78 33 40 0,8 36 6 4158556 TDG533A03571 3,571 .1406 78 33 40 0,8 36 6 4158558 TDG533A03600 3,600 .1417 78 33 40 0,8 36 6 4158560 TDG533A03658 3,658 .1440 78 33 40 0,9 36 6 4158562 TDG533A03700 3,700 .1457 78 33 40 0,9 36 6 4158574 TDG533A03734 3,734 .1470 78 33 40 0,9 36 6 4158576 TDG533A03800 3,800 .1496 87 41 49 0,9 36 6 4158578 TDG533A03900 3,900 .1535 87 41 49 0,9 36 6 4158580 TDG533A03970 3,970 .1563 87 41 49 0,9 36 6 4158582 TDG533A04000 4,000 .1575 87 41 49 0,9 36 6 4158583 TDG533A04039 4,039 .1590 87 41 49 0,9 36 6 4158586 TDG533A04090 4,090 .1610 87 41 49 1,0 36 6 4158588 TDG533A04100 4,100 .1614 87 41 49 1,0 36 6 4158590 TDG533A04200 4,200 .1654 87 41 49 1,0 36 6 4158592 TDG533A04217 4,217 .1660 87 41 49 1,0 36 6 (continued) widia.com T127 Solid Carbide Drills
