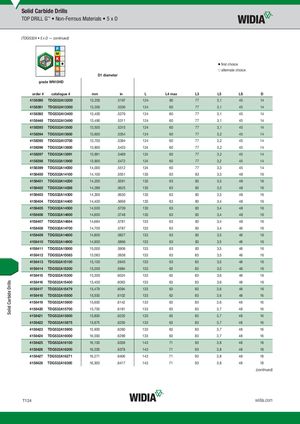

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 5 x D (TDG532A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158390 TDG532A13200 13,200 .5197 124 60 77 3,1 45 14 4158391 TDG532A13300 13,300 .5236 124 60 77 3,1 45 14 4158392 TDG532A13400 13,400 .5276 124 60 77 3,1 45 14 4158448 TDG532A13490 13,490 .5311 124 60 77 3,1 45 14 4158393 TDG532A13500 13,500 .5315 124 60 77 3,1 45 14 4158394 TDG532A13600 13,600 .5354 124 60 77 3,2 45 14 4158395 TDG532A13700 13,700 .5394 124 60 77 3,2 45 14 4158396 TDG532A13800 13,800 .5433 124 60 77 3,2 45 14 4158397 TDG532A13891 13,891 .5469 124 60 77 3,2 45 14 4158398 TDG532A13900 13,900 .5472 124 60 77 3,2 45 14 4158399 TDG532A14000 14,000 .5512 124 60 77 3,3 45 14 4158400 TDG532A14100 14,100 .5551 133 63 83 3,3 48 16 4158401 TDG532A14200 14,200 .5591 133 63 83 3,3 48 16 4158402 TDG532A14288 14,288 .5625 133 63 83 3,3 48 16 4158403 TDG532A14300 14,300 .5630 133 63 83 3,3 48 16 4158404 TDG532A14400 14,400 .5669 133 63 83 3,4 48 16 4158405 TDG532A14500 14,500 .5709 133 63 83 3,4 48 16 4158406 TDG532A14600 14,600 .5748 133 63 83 3,4 48 16 4158407 TDG532A14684 14,684 .5781 133 63 83 3,4 48 16 4158408 TDG532A14700 14,700 .5787 133 63 83 3,4 48 16 4158409 TDG532A14800 14,800 .5827 133 63 83 3,5 48 16 4158410 TDG532A14900 14,900 .5866 133 63 83 3,5 48 16 4158411 TDG532A15000 15,000 .5906 133 63 83 3,5 48 16 4158412 TDG532A15083 15,083 .5938 133 63 83 3,5 48 16 4158413 TDG532A15100 15,100 .5945 133 63 83 3,5 48 16 4158414 TDG532A15200 15,200 .5984 133 63 83 3,5 48 16 4158415 TDG532A15300 15,300 .6024 133 63 83 3,6 48 16 4158416 TDG532A15400 15,400 .6063 133 63 83 3,6 48 16 4158417 TDG532A15479 15,479 .6094 133 63 83 3,6 48 16 4158418 TDG532A15500 15,500 .6102 133 63 83 3,6 48 16 4158419 TDG532A15600 15,600 .6142 133 63 83 3,6 48 16 4158420 TDG532A15700 15,700 .6181 133 63 83 3,7 48 16 4158421 TDG532A15800 15,800 .6220 133 63 83 3,7 48 16 4158422 TDG532A15875 15,875 .6250 133 63 83 3,7 48 16 4158423 TDG532A15900 15,900 .6260 133 63 83 3,7 48 16 4158424 TDG532A16000 16,000 .6299 133 63 83 3,7 48 16 4158425 TDG532A16100 16,100 .6339 143 71 93 3,8 48 18 4158426 TDG532A16200 16,200 .6378 143 71 93 3,8 48 18 4158427 TDG532A16271 16,271 .6406 143 71 93 3,8 48 18 4158428 TDG532A16300 16,300 .6417 143 71 93 3,8 48 18 (continued) T124 widia.com Solid Carbide Drills
