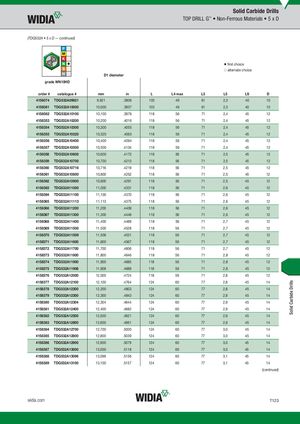

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 5 x D (TDG532A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158074 TDG532A09921 9,921 .3906 103 49 61 2,3 40 10 4158081 TDG532A10000 10,000 .3937 103 49 61 2,3 40 10 4158082 TDG532A10100 10,100 .3976 118 56 71 2,4 45 12 4158353 TDG532A10200 10,200 .4016 118 56 71 2,4 45 12 4158354 TDG532A10300 10,300 .4055 118 56 71 2,4 45 12 4158355 TDG532A10320 10,320 .4063 118 56 71 2,4 45 12 4158356 TDG532A10400 10,400 .4094 118 56 71 2,4 45 12 4158357 TDG532A10500 10,500 .4134 118 56 71 2,4 45 12 4158358 TDG532A10600 10,600 .4173 118 56 71 2,5 45 12 4158359 TDG532A10700 10,700 .4213 118 56 71 2,5 45 12 4158360 TDG532A10716 10,716 .4219 118 56 71 2,5 45 12 4158361 TDG532A10800 10,800 .4252 118 56 71 2,5 45 12 4158362 TDG532A10900 10,900 .4291 118 56 71 2,5 45 12 4158363 TDG532A11000 11,000 .4331 118 56 71 2,6 45 12 4158364 TDG532A11100 11,100 .4370 118 56 71 2,6 45 12 4158365 TDG532A11113 11,113 .4375 118 56 71 2,6 45 12 4158366 TDG532A11200 11,200 .4409 118 56 71 2,6 45 12 4158367 TDG532A11300 11,300 .4449 118 56 71 2,6 45 12 4158368 TDG532A11400 11,400 .4488 118 56 71 2,7 45 12 4158369 TDG532A11500 11,500 .4528 118 56 71 2,7 45 12 4158370 TDG532A11509 11,509 .4531 118 56 71 2,7 45 12 4158371 TDG532A11600 11,600 .4567 118 56 71 2,7 45 12 4158372 TDG532A11700 11,700 .4606 118 56 71 2,7 45 12 4158373 TDG532A11800 11,800 .4646 118 56 71 2,8 45 12 4158374 TDG532A11900 11,900 .4685 118 56 71 2,8 45 12 4158375 TDG532A11908 11,908 .4688 118 56 71 2,8 45 12 4158376 TDG532A12000 12,000 .4724 118 56 71 2,8 45 12 4158377 TDG532A12100 12,100 .4764 124 60 77 2,8 45 14 4158378 TDG532A12200 12,200 .4803 124 60 77 2,8 45 14 4158379 TDG532A12300 12,300 .4843 124 60 77 2,9 45 14 4158380 TDG532A12304 12,304 .4844 124 60 77 2,9 45 14 4158381 TDG532A12400 12,400 .4882 124 60 77 2,9 45 14 4158382 TDG532A12500 12,500 .4921 124 60 77 2,9 45 14 4158383 TDG532A12600 12,600 .4961 124 60 77 2,9 45 14 4158384 TDG532A12700 12,700 .5000 124 60 77 3,0 45 14 4158385 TDG532A12800 12,800 .5039 124 60 77 3,0 45 14 4158386 TDG532A12900 12,900 .5079 124 60 77 3,0 45 14 4158387 TDG532A13000 13,000 .5118 124 60 77 3,0 45 14 4158388 TDG532A13096 13,096 .5156 124 60 77 3,1 45 14 4158389 TDG532A13100 13,100 .5157 124 60 77 3,1 45 14 (continued) widia.com T123 Solid Carbide Drills
