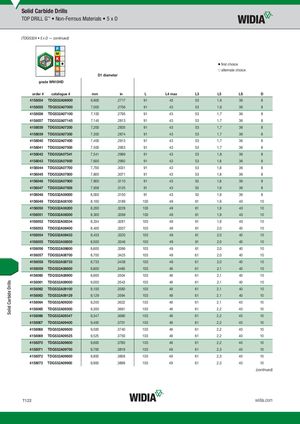

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 5 x D (TDG532A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158034 TDG532A06900 6,900 .2717 91 43 53 1,6 36 8 4158035 TDG532A07000 7,000 .2756 91 43 53 1,6 36 8 4158036 TDG532A07100 7,100 .2795 91 43 53 1,7 36 8 4158037 TDG532A07145 7,145 .2813 91 43 53 1,7 36 8 4158038 TDG532A07200 7,200 .2835 91 43 53 1,7 36 8 4158039 TDG532A07300 7,300 .2874 91 43 53 1,7 36 8 4158040 TDG532A07400 7,400 .2913 91 43 53 1,7 36 8 4158041 TDG532A07500 7,500 .2953 91 43 53 1,7 36 8 4158042 TDG532A07541 7,541 .2969 91 43 53 1,8 36 8 4158043 TDG532A07600 7,600 .2992 91 43 53 1,8 36 8 4158044 TDG532A07700 7,700 .3031 91 43 53 1,8 36 8 4158045 TDG532A07800 7,800 .3071 91 43 53 1,8 36 8 4158046 TDG532A07900 7,900 .3110 91 43 53 1,8 36 8 4158047 TDG532A07938 7,938 .3125 91 43 53 1,9 36 8 4158048 TDG532A08000 8,000 .3150 91 43 53 1,9 36 8 4158049 TDG532A08100 8,100 .3189 103 49 61 1,9 40 10 4158050 TDG532A08200 8,200 .3228 103 49 61 1,9 40 10 4158051 TDG532A08300 8,300 .3268 103 49 61 1,9 40 10 4158052 TDG532A08334 8,334 .3281 103 49 61 1,9 40 10 4158053 TDG532A08400 8,400 .3307 103 49 61 2,0 40 10 4158054 TDG532A08433 8,433 .3320 103 49 61 2,0 40 10 4158055 TDG532A08500 8,500 .3346 103 49 61 2,0 40 10 4158056 TDG532A08600 8,600 .3386 103 49 61 2,0 40 10 4158057 TDG532A08700 8,700 .3425 103 49 61 2,0 40 10 4158058 TDG532A08733 8,733 .3438 103 49 61 2,0 40 10 4158059 TDG532A08800 8,800 .3465 103 49 61 2,1 40 10 4158060 TDG532A08900 8,900 .3504 103 49 61 2,1 40 10 4158061 TDG532A09000 9,000 .3543 103 49 61 2,1 40 10 4158062 TDG532A09100 9,100 .3583 103 49 61 2,1 40 10 4158063 TDG532A09129 9,129 .3594 103 49 61 2,1 40 10 4158064 TDG532A09200 9,200 .3622 103 49 61 2,1 40 10 4158065 TDG532A09300 9,300 .3661 103 49 61 2,2 40 10 4158066 TDG532A09347 9,347 .3680 103 49 61 2,2 40 10 4158067 TDG532A09400 9,400 .3701 103 49 61 2,2 40 10 4158068 TDG532A09500 9,500 .3740 103 49 61 2,2 40 10 4158069 TDG532A09525 9,525 .3750 103 49 61 2,2 40 10 4158070 TDG532A09600 9,600 .3780 103 49 61 2,2 40 10 4158071 TDG532A09700 9,700 .3819 103 49 61 2,3 40 10 4158072 TDG532A09800 9,800 .3858 103 49 61 2,3 40 10 4158073 TDG532A09900 9,900 .3898 103 49 61 2,3 40 10 (continued) T122 widia.com Solid Carbide Drills
