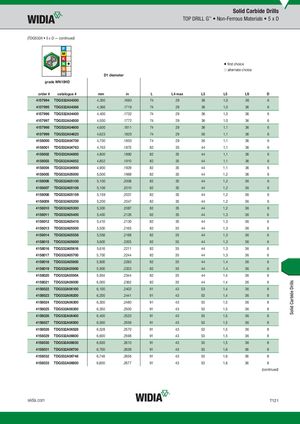

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 5 x D (TDG532A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4157994 TDG532A04300 4,300 .1693 74 29 36 1,0 36 6 4157995 TDG532A04366 4,366 .1719 74 29 36 1,0 36 6 4157996 TDG532A04400 4,400 .1732 74 29 36 1,0 36 6 4157997 TDG532A04500 4,500 .1772 74 29 36 1,0 36 6 4157998 TDG532A04600 4,600 .1811 74 29 36 1,1 36 6 4157999 TDG532A04623 4,623 .1820 74 29 36 1,1 36 6 4158000 TDG532A04700 4,700 .1850 74 29 36 1,1 36 6 4158001 TDG532A04763 4,763 .1875 82 35 44 1,1 36 6 4158002 TDG532A04800 4,800 .1890 82 35 44 1,1 36 6 4158003 TDG532A04852 4,852 .1910 82 35 44 1,1 36 6 4158004 TDG532A04900 4,900 .1929 82 35 44 1,1 36 6 4158005 TDG532A05000 5,000 .1969 82 35 44 1,2 36 6 4158006 TDG532A05100 5,100 .2008 82 35 44 1,2 36 6 4158007 TDG532A05106 5,106 .2010 82 35 44 1,2 36 6 4158008 TDG532A05159 5,159 .2031 82 35 44 1,2 36 6 4158009 TDG532A05200 5,200 .2047 82 35 44 1,2 36 6 4158010 TDG532A05300 5,300 .2087 82 35 44 1,2 36 6 4158011 TDG532A05400 5,400 .2126 82 35 44 1,3 36 6 4158012 TDG532A05410 5,410 .2130 82 35 44 1,3 36 6 4158013 TDG532A05500 5,500 .2165 82 35 44 1,3 36 6 4158014 TDG532A05558 5,558 .2188 82 35 44 1,3 36 6 4158015 TDG532A05600 5,600 .2205 82 35 44 1,3 36 6 4158016 TDG532A05616 5,616 .2211 82 35 44 1,3 36 6 4158017 TDG532A05700 5,700 .2244 82 35 44 1,3 36 6 4158018 TDG532A05800 5,800 .2283 82 35 44 1,4 36 6 4158019 TDG532A05900 5,900 .2323 82 35 44 1,4 36 6 4158020 TDG532A05954 5,954 .2344 82 35 44 1,4 36 6 4158021 TDG532A06000 6,000 .2362 82 35 44 1,4 36 6 4158022 TDG532A06100 6,100 .2402 91 43 53 1,4 36 8 4158023 TDG532A06200 6,200 .2441 91 43 53 1,4 36 8 4158024 TDG532A06300 6,300 .2480 91 43 53 1,5 36 8 4158025 TDG532A06350 6,350 .2500 91 43 53 1,5 36 8 4158026 TDG532A06400 6,400 .2520 91 43 53 1,5 36 8 4158027 TDG532A06500 6,500 .2559 91 43 53 1,5 36 8 4158028 TDG532A06528 6,528 .2570 91 43 53 1,5 36 8 4158029 TDG532A06600 6,600 .2598 91 43 53 1,5 36 8 4158030 TDG532A06630 6,630 .2610 91 43 53 1,5 36 8 4158031 TDG532A06700 6,700 .2638 91 43 53 1,6 36 8 4158032 TDG532A06746 6,746 .2656 91 43 53 1,6 36 8 4158033 TDG532A06800 6,800 .2677 91 43 53 1,6 36 8 (continued) widia.com T121 Solid Carbide Drills
