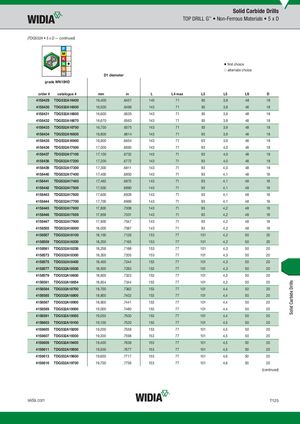

Solid Carbide Drills TOP DRILL G™ • Non-Ferrous Materials • 5 x D (TDG532A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeNW10NH1D0HD order # catalogue # mm in L L4 max L3 L5 LS D 4158429 TDG532A16400 16,400 .6457 143 71 93 3,8 48 18 4158430 TDG532A16500 16,500 .6496 143 71 93 3,8 48 18 4158431 TDG532A16600 16,600 .6535 143 71 93 3,9 48 18 4158432 TDG532A16670 16,670 .6563 143 71 93 3,9 48 18 4158433 TDG532A16700 16,700 .6575 143 71 93 3,9 48 18 4158434 TDG532A16800 16,800 .6614 143 71 93 3,9 48 18 4158435 TDG532A16900 16,900 .6654 143 71 93 3,9 48 18 4158436 TDG532A17000 17,000 .6693 143 71 93 4,0 48 18 4158437 TDG532A17100 17,100 .6732 143 71 93 4,0 48 18 4158438 TDG532A17200 17,200 .6772 143 71 93 4,0 48 18 4158439 TDG532A17300 17,300 .6811 143 71 93 4,0 48 18 4158440 TDG532A17400 17,400 .6850 143 71 93 4,1 48 18 4158441 TDG532A17463 17,463 .6875 143 71 93 4,1 48 18 4158442 TDG532A17500 17,500 .6890 143 71 93 4,1 48 18 4158443 TDG532A17600 17,600 .6929 143 71 93 4,1 48 18 4158444 TDG532A17700 17,700 .6969 143 71 93 4,1 48 18 4158445 TDG532A17800 17,800 .7008 143 71 93 4,2 48 18 4158446 TDG532A17859 17,859 .7031 143 71 93 4,2 48 18 4158447 TDG532A17900 17,900 .7047 143 71 93 4,2 48 18 4158555 TDG532A18000 18,000 .7087 143 71 93 4,2 48 18 4158557 TDG532A18100 18,100 .7126 153 77 101 4,2 50 20 4158559 TDG532A18200 18,200 .7165 153 77 101 4,2 50 20 4158561 TDG532A18258 18,258 .7188 153 77 101 4,3 50 20 4158573 TDG532A18300 18,300 .7205 153 77 101 4,3 50 20 4158575 TDG532A18400 18,400 .7244 153 77 101 4,3 50 20 4158577 TDG532A18500 18,500 .7283 153 77 101 4,3 50 20 4158579 TDG532A18600 18,600 .7323 153 77 101 4,3 50 20 4158581 TDG532A18654 18,654 .7344 153 77 101 4,3 50 20 4158584 TDG532A18700 18,700 .7362 153 77 101 4,4 50 20 4158585 TDG532A18800 18,800 .7402 153 77 101 4,4 50 20 4158587 TDG532A18900 18,900 .7441 153 77 101 4,4 50 20 4158589 TDG532A19000 19,000 .7480 153 77 101 4,4 50 20 4158591 TDG532A19050 19,050 .7500 153 77 101 4,4 50 20 4158603 TDG532A19100 19,100 .7520 153 77 101 4,5 50 20 4158605 TDG532A19200 19,200 .7559 153 77 101 4,5 50 20 4158607 TDG532A19300 19,300 .7598 153 77 101 4,5 50 20 4158609 TDG532A19400 19,400 .7638 153 77 101 4,5 50 20 4158611 TDG532A19500 19,500 .7677 153 77 101 4,5 50 20 4158613 TDG532A19600 19,600 .7717 153 77 101 4,6 50 20 4158616 TDG532A19700 19,700 .7756 153 77 101 4,6 50 20 (continued) widia.com T125 Solid Carbide Drills
