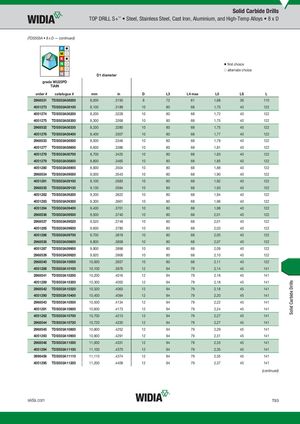

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (TDS503A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2968531 TDS503A08000 8,000 .3150 8 72 61 1,68 36 110 4051273 TDS503A08100 8,100 .3189 10 80 68 1,70 40 122 4051274 TDS503A08200 8,200 .3228 10 80 68 1,72 40 122 4051275 TDS503A08300 8,300 .3268 10 80 68 1,75 40 122 2968532 TDS503A08330 8,330 .3280 10 80 68 1,75 40 122 4051276 TDS503A08400 8,400 .3307 10 80 68 1,77 40 122 2968533 TDS503A08500 8,500 .3346 10 80 68 1,79 40 122 4051277 TDS503A08600 8,600 .3386 10 80 68 1,81 40 122 4051278 TDS503A08700 8,700 .3425 10 80 68 1,83 40 122 4051279 TDS503A08800 8,800 .3465 10 80 68 1,85 40 122 4051280 TDS503A08900 8,900 .3504 10 80 68 1,88 40 122 2968534 TDS503A09000 9,000 .3543 10 80 68 1,90 40 122 4051281 TDS503A09100 9,100 .3583 10 80 68 1,92 40 122 2968535 TDS503A09130 9,130 .3594 10 80 68 1,93 40 122 4051282 TDS503A09200 9,200 .3622 10 80 68 1,94 40 122 4051283 TDS503A09300 9,300 .3661 10 80 68 1,96 40 122 4051284 TDS503A09400 9,400 .3701 10 80 68 1,98 40 122 2968536 TDS503A09500 9,500 .3740 10 80 68 2,01 40 122 2968537 TDS503A09520 9,520 .3748 10 80 68 2,01 40 122 4051285 TDS503A09600 9,600 .3780 10 80 68 2,03 40 122 4051286 TDS503A09700 9,700 .3819 10 80 68 2,05 40 122 2968538 TDS503A09800 9,800 .3858 10 80 68 2,07 40 122 4051287 TDS503A09900 9,900 .3898 10 80 68 2,09 40 122 2968539 TDS503A09920 9,920 .3906 10 80 68 2,10 40 122 2968540 TDS503A10000 10,000 .3937 10 80 68 2,11 40 122 4051288 TDS503A10100 10,100 .3976 12 94 79 2,14 45 141 2968541 TDS503A10200 10,200 .4016 12 94 79 2,16 45 141 4051289 TDS503A10300 10,300 .4055 12 94 79 2,18 45 141 2968542 TDS503A10320 10,320 .4063 12 94 79 2,18 45 141 4051290 TDS503A10400 10,400 .4094 12 94 79 2,20 45 141 2968543 TDS503A10500 10,500 .4134 12 94 79 2,22 45 141 4051291 TDS503A10600 10,600 .4173 12 94 79 2,24 45 141 4051292 TDS503A10700 10,700 .4213 12 94 79 2,27 45 141 2968544 TDS503A10720 10,720 .4220 12 94 79 2,27 45 141 2968545 TDS503A10800 10,800 .4252 12 94 79 2,29 45 141 4051293 TDS503A10900 10,900 .4291 12 94 79 2,31 45 141 2968546 TDS503A11000 11,000 .4331 12 94 79 2,33 45 141 4051294 TDS503A11100 11,100 .4370 12 94 79 2,35 45 141 3998456 TDS503A11110 11,110 .4374 12 94 79 2,35 45 141 4051295 TDS503A11200 11,200 .4409 12 94 79 2,37 45 141 (continued) widia.com T93 Solid Carbide Drills
