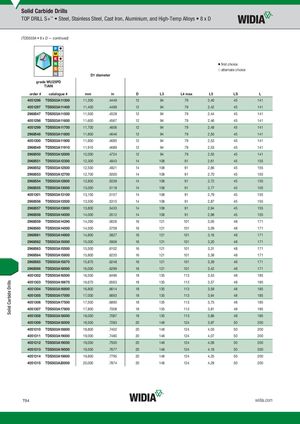

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (TDS503A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 4051296 TDS503A11300 11,300 .4449 12 94 79 2,40 45 141 4051297 TDS503A11400 11,400 .4488 12 94 79 2,42 45 141 2968547 TDS503A11500 11,500 .4528 12 94 79 2,44 45 141 4051298 TDS503A11600 11,600 .4567 12 94 79 2,46 45 141 4051299 TDS503A11700 11,700 .4606 12 94 79 2,48 45 141 2968548 TDS503A11800 11,800 .4646 12 94 79 2,50 45 141 4051300 TDS503A11900 11,900 .4685 12 94 79 2,53 45 141 2968549 TDS503A11910 11,910 .4689 12 94 79 2,53 45 141 2968550 TDS503A12000 12,000 .4724 12 94 79 2,55 45 141 2968551 TDS503A12300 12,300 .4843 14 108 91 2,61 45 155 2968552 TDS503A12500 12,500 .4921 14 108 91 2,66 45 155 2968553 TDS503A12700 12,700 .5000 14 108 91 2,70 45 155 2968554 TDS503A12800 12,800 .5039 14 108 91 2,72 45 155 2968555 TDS503A13000 13,000 .5118 14 108 91 2,77 45 155 4051301 TDS503A13100 13,100 .5157 14 108 91 2,79 45 155 2968556 TDS503A13500 13,500 .5315 14 108 91 2,87 45 155 2968557 TDS503A13800 13,800 .5433 14 108 91 2,94 45 155 2968558 TDS503A14000 14,000 .5512 14 108 91 2,98 45 155 2968559 TDS503A14290 14,290 .5626 16 121 101 3,05 48 171 2968560 TDS503A14500 14,500 .5709 16 121 101 3,09 48 171 2968561 TDS503A14800 14,800 .5827 16 121 101 3,16 48 171 2968562 TDS503A15000 15,000 .5906 16 121 101 3,20 48 171 2968563 TDS503A15500 15,500 .6102 16 121 101 3,31 48 171 2968564 TDS503A15800 15,800 .6220 16 121 101 3,38 48 171 2968565 TDS503A15870 15,870 .6248 16 121 101 3,39 48 171 2968566 TDS503A16000 16,000 .6299 16 121 101 3,42 48 171 4051302 TDS503A16500 16,500 .6496 18 135 113 3,53 48 185 4051303 TDS503A16670 16,670 .6563 18 135 113 3,57 48 185 4051304 TDS503A16800 16,800 .6614 18 135 113 3,59 48 185 4051305 TDS503A17000 17,000 .6693 18 135 113 3,64 48 185 4051306 TDS503A17500 17,500 .6890 18 135 113 3,75 48 185 4051307 TDS503A17800 17,800 .7008 18 135 113 3,81 48 185 4051308 TDS503A18000 18,000 .7087 18 135 113 3,86 48 185 4051309 TDS503A18500 18,500 .7283 20 148 124 3,97 50 200 4051310 TDS503A18800 18,800 .7402 20 148 124 4,03 50 200 4051311 TDS503A19000 19,000 .7480 20 148 124 4,07 50 200 4051312 TDS503A19050 19,050 .7500 20 148 124 4,09 50 200 4051313 TDS503A19500 19,500 .7677 20 148 124 4,18 50 200 4051314 TDS503A19800 19,800 .7795 20 148 124 4,25 50 200 4051315 TDS503A20000 20,000 .7874 20 148 124 4,29 50 200 T94 widia.com Solid Carbide Drills
