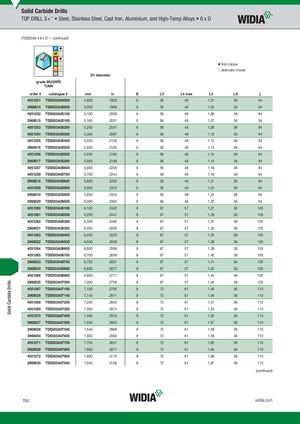

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (TDS503A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 4051251 TDS503A04900 4,900 .1929 6 56 48 1,01 36 94 2968514 TDS503A05000 5,000 .1969 6 56 48 1,03 36 94 4051252 TDS503A05100 5,100 .2008 6 56 48 1,06 36 94 2968515 TDS503A05160 5,160 .2031 6 56 48 1,07 36 94 4051253 TDS503A05200 5,200 .2047 6 56 48 1,08 36 94 4051254 TDS503A05300 5,300 .2087 6 56 48 1,10 36 94 4051255 TDS503A05400 5,400 .2126 6 56 48 1,12 36 94 2968516 TDS503A05500 5,500 .2165 6 56 48 1,14 36 94 4051256 TDS503A05550 5,550 .2185 6 56 48 1,15 36 94 2968517 TDS503A05560 5,560 .2189 6 56 48 1,15 36 94 4051257 TDS503A05600 5,600 .2205 6 56 48 1,16 36 94 4051258 TDS503A05700 5,700 .2244 6 56 48 1,18 36 94 2968518 TDS503A05800 5,800 .2283 6 56 48 1,21 36 94 4051259 TDS503A05900 5,900 .2323 6 56 48 1,23 36 94 2968519 TDS503A05950 5,950 .2343 6 56 48 1,24 36 94 2968520 TDS503A06000 6,000 .2362 6 56 48 1,25 36 94 4051260 TDS503A06100 6,100 .2402 8 67 57 1,27 36 105 4051261 TDS503A06200 6,200 .2441 8 67 57 1,29 36 105 4051262 TDS503A06300 6,300 .2480 8 67 57 1,31 36 105 2968521 TDS503A06350 6,350 .2500 8 67 57 1,32 36 105 4051263 TDS503A06400 6,400 .2520 8 67 57 1,33 36 105 2968522 TDS503A06500 6,500 .2559 8 67 57 1,36 36 105 4051264 TDS503A06600 6,600 .2598 8 67 57 1,38 36 105 4051265 TDS503A06700 6,700 .2638 8 67 57 1,40 36 105 2968523 TDS503A06750 6,750 .2657 8 67 57 1,41 36 105 2968524 TDS503A06800 6,800 .2677 8 67 57 1,42 36 105 4051266 TDS503A06900 6,900 .2717 8 67 57 1,44 36 105 2968525 TDS503A07000 7,000 .2756 8 67 57 1,46 36 105 4051267 TDS503A07100 7,100 .2795 8 72 61 1,49 36 110 2968526 TDS503A07140 7,140 .2811 8 72 61 1,49 36 110 4051268 TDS503A07200 7,200 .2835 8 72 61 1,51 36 110 4051269 TDS503A07300 7,300 .2874 8 72 61 1,53 36 110 4051270 TDS503A07400 7,400 .2913 8 72 61 1,55 36 110 2968527 TDS503A07500 7,500 .2953 8 72 61 1,57 36 110 2968528 TDS503A07540 7,540 .2969 8 72 61 1,58 36 110 3998454 TDS503A07600 7,600 .2992 8 72 61 1,59 36 110 4051271 TDS503A07700 7,700 .3031 8 72 61 1,62 36 110 2968529 TDS503A07800 7,800 .3071 8 72 61 1,64 36 110 4051272 TDS503A07900 7,900 .3110 8 72 61 1,66 36 110 2968530 TDS503A07940 7,940 .3126 8 72 61 1,67 36 110 (continued) T92 widia.com Solid Carbide Drills
