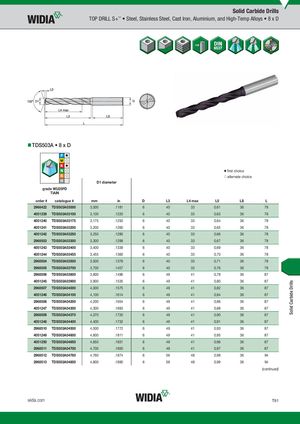

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D „TDS503A • 8 x D ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2968422 TDS503A03000 3,000 .1181 6 40 33 0,61 36 78 4051239 TDS503A03100 3,100 .1220 6 40 33 0,63 36 78 4051240 TDS503A03175 3,175 .1250 6 40 33 0,64 36 78 4051241 TDS503A03200 3,200 .1260 6 40 33 0,65 36 78 4051242 TDS503A03250 3,250 .1280 6 40 33 0,66 36 78 2968503 TDS503A03300 3,300 .1299 6 40 33 0,67 36 78 4051243 TDS503A03400 3,400 .1339 6 40 33 0,69 36 78 4051244 TDS503A03455 3,455 .1360 6 40 33 0,70 36 78 2968504 TDS503A03500 3,500 .1378 6 40 33 0,71 36 78 2968505 TDS503A03700 3,700 .1457 6 40 33 0,76 36 78 2968506 TDS503A03800 3,800 .1496 6 49 41 0,78 36 87 4051245 TDS503A03900 3,900 .1535 6 49 41 0,80 36 87 2968507 TDS503A04000 4,000 .1575 6 49 41 0,82 36 87 4051246 TDS503A04100 4,100 .1614 6 49 41 0,84 36 87 2968508 TDS503A04200 4,200 .1654 6 49 41 0,86 36 87 4051247 TDS503A04300 4,300 .1693 6 49 41 0,88 36 87 2968509 TDS503A04370 4,370 .1720 6 49 41 0,90 36 87 4051248 TDS503A04400 4,400 .1732 6 49 41 0,91 36 87 2968510 TDS503A04500 4,500 .1772 6 49 41 0,93 36 87 4051249 TDS503A04600 4,600 .1811 6 49 41 0,95 36 87 4051250 TDS503A04650 4,650 .1831 6 49 41 0,96 36 87 2968511 TDS503A04700 4,700 .1850 6 49 41 0,97 36 87 2968512 TDS503A04760 4,760 .1874 6 56 48 0,98 36 94 2968513 TDS503A04800 4,800 .1890 6 56 48 0,99 36 94 (continued) widia.com T91 Solid Carbide Drills
