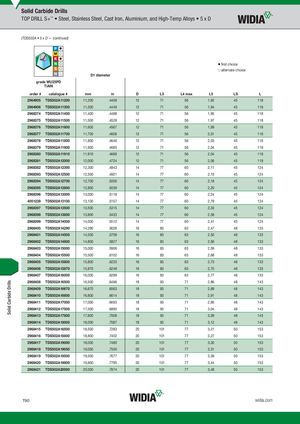

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (TDS502A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2964905 TDS502A11200 11,200 .4409 12 71 56 1,92 45 118 2964906 TDS502A11300 11,300 .4449 12 71 56 1,94 45 118 2968374 TDS502A11400 11,400 .4488 12 71 56 1,95 45 118 2968375 TDS502A11500 11,500 .4528 12 71 56 1,97 45 118 2968376 TDS502A11600 11,600 .4567 12 71 56 1,99 45 118 2968377 TDS502A11700 11,700 .4606 12 71 56 2,01 45 118 2968378 TDS502A11800 11,800 .4646 12 71 56 2,03 45 118 2968379 TDS502A11900 11,900 .4685 12 71 56 2,04 45 118 2968380 TDS502A11910 11,910 .4689 12 71 56 2,04 45 118 2968381 TDS502A12000 12,000 .4724 12 71 56 2,06 45 118 2968382 TDS502A12300 12,300 .4843 14 77 60 2,11 45 124 2968393 TDS502A12500 12,500 .4921 14 77 60 2,15 45 124 2968394 TDS502A12700 12,700 .5000 14 77 60 2,18 45 124 2968395 TDS502A12800 12,800 .5039 14 77 60 2,20 45 124 2968396 TDS502A13000 13,000 .5118 14 77 60 2,24 45 124 4051238 TDS502A13100 13,100 .5157 14 77 60 2,79 45 124 2968397 TDS502A13500 13,500 .5315 14 77 60 2,33 45 124 2968398 TDS502A13800 13,800 .5433 14 77 60 2,38 45 124 2968399 TDS502A14000 14,000 .5512 14 77 60 2,41 45 124 2968400 TDS502A14290 14,290 .5626 16 83 63 2,47 48 133 2968401 TDS502A14500 14,500 .5709 16 83 63 2,50 48 133 2968402 TDS502A14800 14,800 .5827 16 83 63 2,56 48 133 2968403 TDS502A15000 15,000 .5906 16 83 63 2,59 48 133 2968404 TDS502A15500 15,500 .6102 16 83 63 2,68 48 133 2968405 TDS502A15800 15,800 .6220 16 83 63 2,73 48 133 2968406 TDS502A15870 15,870 .6248 16 83 63 2,75 48 133 2968407 TDS502A16000 16,000 .6299 16 83 63 2,77 48 133 2968408 TDS502A16500 16,500 .6496 18 93 71 2,86 48 143 2968409 TDS502A16670 16,670 .6563 18 93 71 2,89 48 143 2968410 TDS502A16800 16,800 .6614 18 93 71 2,91 48 143 2968411 TDS502A17000 17,000 .6693 18 93 71 2,95 48 143 2968412 TDS502A17500 17,500 .6890 18 93 71 3,04 48 143 2968413 TDS502A17800 17,800 .7008 18 93 71 3,09 48 143 2968414 TDS502A18000 18,000 .7087 18 93 71 3,12 48 143 2968415 TDS502A18500 18,500 .7283 20 101 77 3,21 50 153 2968416 TDS502A18800 18,800 .7402 20 101 77 3,27 50 153 2968417 TDS502A19000 19,000 .7480 20 101 77 3,30 50 153 2968418 TDS502A19050 19,050 .7500 20 101 77 3,31 50 153 2968419 TDS502A19500 19,500 .7677 20 101 77 3,39 50 153 2968420 TDS502A19800 19,800 .7795 20 101 77 3,44 50 153 2968421 TDS502A20000 20,000 .7874 20 101 77 3,48 50 153 T90 widia.com Solid Carbide Drills
