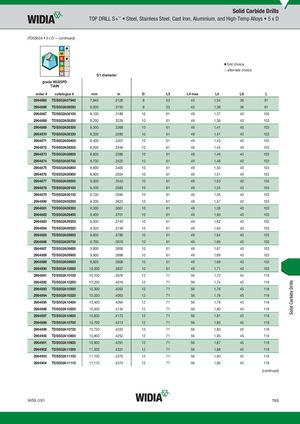

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (TDS502A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2964865 TDS502A07940 7,940 .3126 8 53 43 1,34 36 91 2964866 TDS502A08000 8,000 .3150 8 53 43 1,36 36 91 2964867 TDS502A08100 8,100 .3189 10 61 49 1,37 40 103 2964868 TDS502A08200 8,200 .3228 10 61 49 1,39 40 103 2964869 TDS502A08300 8,300 .3268 10 61 49 1,41 40 103 2964870 TDS502A08330 8,330 .3280 10 61 49 1,41 40 103 2964871 TDS502A08400 8,400 .3307 10 61 49 1,43 40 103 2964872 TDS502A08500 8,500 .3346 10 61 49 1,44 40 103 2964873 TDS502A08600 8,600 .3386 10 61 49 1,46 40 103 2964874 TDS502A08700 8,700 .3425 10 61 49 1,48 40 103 2964875 TDS502A08800 8,800 .3465 10 61 49 1,50 40 103 2964876 TDS502A08900 8,900 .3504 10 61 49 1,51 40 103 2964877 TDS502A09000 9,000 .3543 10 61 49 1,53 40 103 2964878 TDS502A09100 9,100 .3583 10 61 49 1,55 40 103 2964879 TDS502A09130 9,130 .3594 10 61 49 1,55 40 103 2964880 TDS502A09200 9,200 .3622 10 61 49 1,57 40 103 2964881 TDS502A09300 9,300 .3661 10 61 49 1,58 40 103 2964882 TDS502A09400 9,400 .3701 10 61 49 1,60 40 103 2964883 TDS502A09500 9,500 .3740 10 61 49 1,62 40 103 2964884 TDS502A09520 9,520 .3748 10 61 49 1,62 40 103 2964885 TDS502A09600 9,600 .3780 10 61 49 1,64 40 103 2964886 TDS502A09700 9,700 .3819 10 61 49 1,65 40 103 2964887 TDS502A09800 9,800 .3858 10 61 49 1,67 40 103 2964888 TDS502A09900 9,900 .3898 10 61 49 1,69 40 103 2964889 TDS502A09920 9,920 .3906 10 61 49 1,69 40 103 2964890 TDS502A10000 10,000 .3937 10 61 49 1,71 40 103 2964891 TDS502A10100 10,100 .3976 12 71 56 1,73 45 118 2964892 TDS502A10200 10,200 .4016 12 71 56 1,74 45 118 2964893 TDS502A10300 10,300 .4055 12 71 56 1,76 45 118 2964894 TDS502A10320 10,320 .4063 12 71 56 1,76 45 118 2964895 TDS502A10400 10,400 .4094 12 71 56 1,78 45 118 2964896 TDS502A10500 10,500 .4134 12 71 56 1,80 45 118 2964897 TDS502A10600 10,600 .4173 12 71 56 1,81 45 118 2964898 TDS502A10700 10,700 .4213 12 71 56 1,83 45 118 2964899 TDS502A10720 10,720 .4220 12 71 56 1,83 45 118 2964900 TDS502A10800 10,800 .4252 12 71 56 1,85 45 118 2964901 TDS502A10900 10,900 .4291 12 71 56 1,87 45 118 2964902 TDS502A11000 11,000 .4331 12 71 56 1,88 45 118 2964903 TDS502A11100 11,100 .4370 12 71 56 1,90 45 118 2964904 TDS502A11110 11,110 .4374 12 71 56 1,90 45 118 (continued) widia.com T89 Solid Carbide Drills
