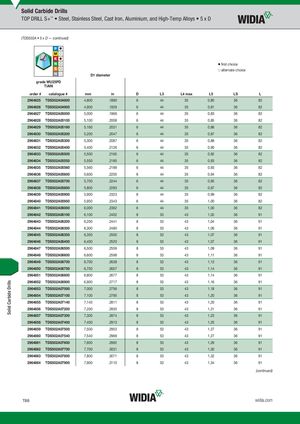

Solid Carbide Drills TOP DRILL S+™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 5 x D (TDS502A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in D L3 L4 max L5 LS L 2964825 TDS502A04800 4,800 .1890 6 44 35 0,80 36 82 2964826 TDS502A04900 4,900 .1929 6 44 35 0,81 36 82 2964827 TDS502A05000 5,000 .1969 6 44 35 0,83 36 82 2964828 TDS502A05100 5,100 .2008 6 44 35 0,85 36 82 2964829 TDS502A05160 5,160 .2031 6 44 35 0,86 36 82 2964830 TDS502A05200 5,200 .2047 6 44 35 0,87 36 82 2964831 TDS502A05300 5,300 .2087 6 44 35 0,88 36 82 2964832 TDS502A05400 5,400 .2126 6 44 35 0,90 36 82 2964833 TDS502A05500 5,500 .2165 6 44 35 0,92 36 82 2964834 TDS502A05550 5,550 .2185 6 44 35 0,93 36 82 2964835 TDS502A05560 5,560 .2189 6 44 35 0,93 36 82 2964836 TDS502A05600 5,600 .2205 6 44 35 0,94 36 82 2964837 TDS502A05700 5,700 .2244 6 44 35 0,95 36 82 2964838 TDS502A05800 5,800 .2283 6 44 35 0,97 36 82 2964839 TDS502A05900 5,900 .2323 6 44 35 0,99 36 82 2964840 TDS502A05950 5,950 .2343 6 44 35 1,00 36 82 2964841 TDS502A06000 6,000 .2362 6 44 35 1,00 36 82 2964842 TDS502A06100 6,100 .2402 8 53 43 1,02 36 91 2964843 TDS502A06200 6,200 .2441 8 53 43 1,04 36 91 2964844 TDS502A06300 6,300 .2480 8 53 43 1,06 36 91 2964845 TDS502A06350 6,350 .2500 8 53 43 1,07 36 91 2964846 TDS502A06400 6,400 .2520 8 53 43 1,07 36 91 2964847 TDS502A06500 6,500 .2559 8 53 43 1,09 36 91 2964848 TDS502A06600 6,600 .2598 8 53 43 1,11 36 91 2964849 TDS502A06700 6,700 .2638 8 53 43 1,13 36 91 2964850 TDS502A06750 6,750 .2657 8 53 43 1,14 36 91 2964851 TDS502A06800 6,800 .2677 8 53 43 1,14 36 91 2964852 TDS502A06900 6,900 .2717 8 53 43 1,16 36 91 2964853 TDS502A07000 7,000 .2756 8 53 43 1,18 36 91 2964854 TDS502A07100 7,100 .2795 8 53 43 1,20 36 91 2964855 TDS502A07140 7,140 .2811 8 53 43 1,20 36 91 2964856 TDS502A07200 7,200 .2835 8 53 43 1,21 36 91 2964857 TDS502A07300 7,300 .2874 8 53 43 1,23 36 91 2964858 TDS502A07400 7,400 .2913 8 53 43 1,25 36 91 2964859 TDS502A07500 7,500 .2953 8 53 43 1,27 36 91 2964860 TDS502A07540 7,540 .2969 8 53 43 1,27 36 91 2964861 TDS502A07600 7,600 .2992 8 53 43 1,29 36 91 2964862 TDS502A07700 7,700 .3031 8 53 43 1,30 36 91 2964863 TDS502A07800 7,800 .3071 8 53 43 1,32 36 91 2964864 TDS502A07900 7,900 .3110 8 53 43 1,34 36 91 (continued) T88 widia.com Solid Carbide Drills
