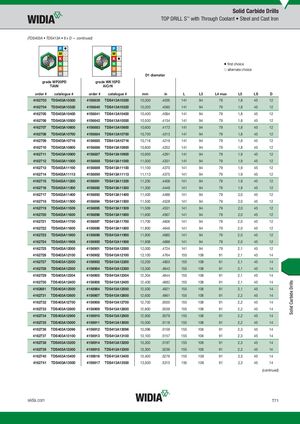

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS403A • TDS413A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162703 TDS403A10300 4156839 TDS413A10300 10,300 .4055 141 94 79 1,8 45 12 4162704 TDS403A10320 4156840 TDS413A10320 10,320 .4063 141 94 79 1,8 45 12 4162705 TDS403A10400 4156841 TDS413A10400 10,400 .4094 141 94 79 1,8 45 12 4162706 TDS403A10500 4156842 TDS413A10500 10,500 .4134 141 94 79 1,8 45 12 4162707 TDS403A10600 4156883 TDS413A10600 10,600 .4173 141 94 79 1,8 45 12 4162708 TDS403A10700 4156884 TDS413A10700 10,700 .4213 141 94 79 1,8 45 12 4162709 TDS403A10716 4156885 TDS413A10716 10,716 .4219 141 94 79 1,8 45 12 4162710 TDS403A10800 4156886 TDS413A10800 10,800 .4252 141 94 79 1,8 45 12 4162711 TDS403A10900 4156887 TDS413A10900 10,900 .4291 141 94 79 1,9 45 12 4162712 TDS403A11000 4156888 TDS413A11000 11,000 .4331 141 94 79 1,9 45 12 4162713 TDS403A11100 4156889 TDS413A11100 11,100 .4370 141 94 79 1,9 45 12 4162714 TDS403A11113 4156890 TDS413A11113 11,113 .4375 141 94 79 1,9 45 12 4162715 TDS403A11200 4156891 TDS413A11200 11,200 .4409 141 94 79 1,9 45 12 4162716 TDS403A11300 4156892 TDS413A11300 11,300 .4449 141 94 79 1,9 45 12 4162717 TDS403A11400 4156893 TDS413A11400 11,400 .4488 141 94 79 2,0 45 12 4162718 TDS403A11500 4156894 TDS413A11500 11,500 .4528 141 94 79 2,0 45 12 4162719 TDS403A11509 4156895 TDS413A11509 11,509 .4531 141 94 79 2,0 45 12 4162720 TDS403A11600 4156896 TDS413A11600 11,600 .4567 141 94 79 2,0 45 12 4162721 TDS403A11700 4156897 TDS413A11700 11,700 .4606 141 94 79 2,0 45 12 4162722 TDS403A11800 4156898 TDS413A11800 11,800 .4646 141 94 79 2,0 45 12 4162723 TDS403A11900 4156899 TDS413A11900 11,900 .4685 141 94 79 2,0 45 12 4162724 TDS403A11908 4156900 TDS413A11908 11,908 .4688 141 94 79 2,0 45 12 4162725 TDS403A12000 4156901 TDS413A12000 12,000 .4724 141 94 79 2,1 45 12 4162726 TDS403A12100 4156902 TDS413A12100 12,100 .4764 155 108 91 2,1 45 14 4162727 TDS403A12200 4156903 TDS413A12200 12,200 .4803 155 108 91 2,1 45 14 4162728 TDS403A12300 4156904 TDS413A12300 12,300 .4843 155 108 91 2,1 45 14 4162729 TDS403A12304 4156905 TDS413A12304 12,304 .4844 155 108 91 2,1 45 14 4162730 TDS403A12400 4156906 TDS413A12400 12,400 .4882 155 108 91 2,1 45 14 4162681 TDS403A12500 4148984 TDS413A12500 12,500 .4921 155 108 91 2,1 45 14 4162731 TDS403A12600 4156907 TDS413A12600 12,600 .4961 155 108 91 2,2 45 14 4162732 TDS403A12700 4156908 TDS413A12700 12,700 .5000 155 108 91 2,2 45 14 4162733 TDS403A12800 4156909 TDS413A12800 12,800 .5039 155 108 91 2,2 45 14 4162734 TDS403A12900 4156910 TDS413A12900 12,900 .5079 155 108 91 2,2 45 14 4162735 TDS403A13000 4156911 TDS413A13000 13,000 .5118 155 108 91 2,2 45 14 4162736 TDS403A13096 4156912 TDS413A13096 13,096 .5156 155 108 91 2,3 45 14 4162737 TDS403A13100 4156913 TDS413A13100 13,100 .5157 155 108 91 2,3 45 14 4162738 TDS403A13200 4156914 TDS413A13200 13,200 .5197 155 108 91 2,3 45 14 4162739 TDS403A13300 4156915 TDS413A13300 13,300 .5236 155 108 91 2,3 45 14 4162740 TDS403A13400 4156916 TDS413A13400 13,400 .5276 155 108 91 2,3 45 14 4162741 TDS403A13500 4156917 TDS413A13500 13,500 .5315 155 108 91 2,3 45 14 (continued) widia.com T71 Solid Carbide Drills
