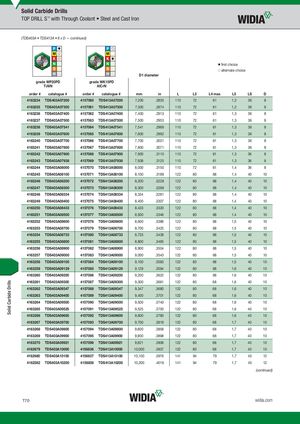

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS403A • TDS413A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163234 TDS403A07200 4157060 TDS413A07200 7,200 .2835 110 72 61 1,2 36 8 4163235 TDS403A07300 4157061 TDS413A07300 7,300 .2874 110 72 61 1,2 36 8 4163236 TDS403A07400 4157062 TDS413A07400 7,400 .2913 110 72 61 1,3 36 8 4163237 TDS403A07500 4157063 TDS413A07500 7,500 .2953 110 72 61 1,3 36 8 4163238 TDS403A07541 4157064 TDS413A07541 7,541 .2969 110 72 61 1,3 36 8 4163239 TDS403A07600 4157065 TDS413A07600 7,600 .2992 110 72 61 1,3 36 8 4163240 TDS403A07700 4157066 TDS413A07700 7,700 .3031 110 72 61 1,3 36 8 4163241 TDS403A07800 4157067 TDS413A07800 7,800 .3071 110 72 61 1,3 36 8 4163242 TDS403A07900 4157068 TDS413A07900 7,900 .3110 110 72 61 1,3 36 8 4163243 TDS403A07938 4157069 TDS413A07938 7,938 .3125 110 72 61 1,3 36 8 4163244 TDS403A08000 4157070 TDS413A08000 8,000 .3150 110 72 61 1,4 36 8 4163245 TDS403A08100 4157071 TDS413A08100 8,100 .3189 122 80 68 1,4 40 10 4163246 TDS403A08200 4157072 TDS413A08200 8,200 .3228 122 80 68 1,4 40 10 4163247 TDS403A08300 4157073 TDS413A08300 8,300 .3268 122 80 68 1,4 40 10 4163248 TDS403A08334 4157074 TDS413A08334 8,334 .3281 122 80 68 1,4 40 10 4163249 TDS403A08400 4157075 TDS413A08400 8,400 .3307 122 80 68 1,4 40 10 4163250 TDS403A08433 4157076 TDS413A08433 8,433 .3320 122 80 68 1,4 40 10 4163251 TDS403A08500 4157077 TDS413A08500 8,500 .3346 122 80 68 1,4 40 10 4163252 TDS403A08600 4157078 TDS413A08600 8,600 .3386 122 80 68 1,5 40 10 4163253 TDS403A08700 4157079 TDS413A08700 8,700 .3425 122 80 68 1,5 40 10 4163254 TDS403A08733 4157080 TDS413A08733 8,733 .3438 122 80 68 1,5 40 10 4163255 TDS403A08800 4157081 TDS413A08800 8,800 .3465 122 80 68 1,5 40 10 4163256 TDS403A08900 4157082 TDS413A08900 8,900 .3504 122 80 68 1,5 40 10 4163257 TDS403A09000 4157083 TDS413A09000 9,000 .3543 122 80 68 1,5 40 10 4163258 TDS403A09100 4157084 TDS413A09100 9,100 .3583 122 80 68 1,5 40 10 4163259 TDS403A09129 4157085 TDS413A09129 9,129 .3594 122 80 68 1,6 40 10 4163260 TDS403A09200 4157086 TDS413A09200 9,200 .3622 122 80 68 1,6 40 10 4163261 TDS403A09300 4157087 TDS413A09300 9,300 .3661 122 80 68 1,6 40 10 4163262 TDS403A09347 4157088 TDS413A09347 9,347 .3680 122 80 68 1,6 40 10 4163263 TDS403A09400 4157089 TDS413A09400 9,400 .3701 122 80 68 1,6 40 10 4163264 TDS403A09500 4157090 TDS413A09500 9,500 .3740 122 80 68 1,6 40 10 4163265 TDS403A09525 4157091 TDS413A09525 9,525 .3750 122 80 68 1,6 40 10 4163266 TDS403A09600 4157092 TDS413A09600 9,600 .3780 122 80 68 1,6 40 10 4163267 TDS403A09700 4157093 TDS413A09700 9,700 .3819 122 80 68 1,7 40 10 4163268 TDS403A09800 4157094 TDS413A09800 9,800 .3858 122 80 68 1,7 40 10 4163269 TDS403A09900 4157095 TDS413A09900 9,900 .3898 122 80 68 1,7 40 10 4163270 TDS403A09921 4157096 TDS413A09921 9,921 .3906 122 80 68 1,7 40 10 4162679 TDS403A10000 4156836 TDS413A10000 10,000 .3937 122 80 68 1,7 40 10 4162680 TDS403A10100 4156837 TDS413A10100 10,100 .3976 141 94 79 1,7 45 12 4162382 TDS403A10200 4156838 TDS413A10200 10,200 .4016 141 94 79 1,7 45 12 (continued) T70 widia.com Solid Carbide Drills
