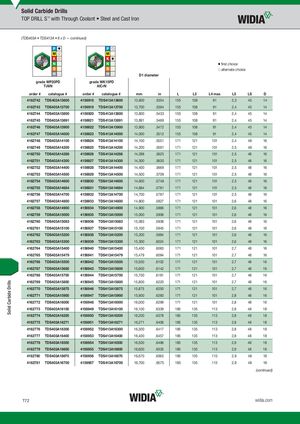

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS403A • TDS413A • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162742 TDS403A13600 4156918 TDS413A13600 13,600 .5354 155 108 91 2,3 45 14 4162743 TDS403A13700 4156919 TDS413A13700 13,700 .5394 155 108 91 2,4 45 14 4162744 TDS403A13800 4156920 TDS413A13800 13,800 .5433 155 108 91 2,4 45 14 4162745 TDS403A13891 4156921 TDS413A13891 13,891 .5469 155 108 91 2,4 45 14 4162746 TDS403A13900 4156922 TDS413A13900 13,900 .5472 155 108 91 2,4 45 14 4162747 TDS403A14000 4156923 TDS413A14000 14,000 .5512 155 108 91 2,4 45 14 4162748 TDS403A14100 4156924 TDS413A14100 14,100 .5551 171 121 101 2,4 48 16 4162749 TDS403A14200 4156925 TDS413A14200 14,200 .5591 171 121 101 2,5 48 16 4162750 TDS403A14288 4156926 TDS413A14288 14,288 .5625 171 121 101 2,5 48 16 4162751 TDS403A14300 4156927 TDS413A14300 14,300 .5630 171 121 101 2,5 48 16 4162752 TDS403A14400 4156928 TDS413A14400 14,400 .5669 171 121 101 2,5 48 16 4162753 TDS403A14500 4156929 TDS413A14500 14,500 .5709 171 121 101 2,5 48 16 4162754 TDS403A14600 4156930 TDS413A14600 14,600 .5748 171 121 101 2,5 48 16 4162755 TDS403A14684 4156931 TDS413A14684 14,684 .5781 171 121 101 2,5 48 16 4162756 TDS403A14700 4156932 TDS413A14700 14,700 .5787 171 121 101 2,5 48 16 4162757 TDS403A14800 4156933 TDS413A14800 14,800 .5827 171 121 101 2,6 48 16 4162758 TDS403A14900 4156934 TDS413A14900 14,900 .5866 171 121 101 2,6 48 16 4162759 TDS403A15000 4156935 TDS413A15000 15,000 .5906 171 121 101 2,6 48 16 4162760 TDS403A15083 4156936 TDS413A15083 15,083 .5938 171 121 101 2,6 48 16 4162761 TDS403A15100 4156937 TDS413A15100 15,100 .5945 171 121 101 2,6 48 16 4162762 TDS403A15200 4156938 TDS413A15200 15,200 .5984 171 121 101 2,6 48 16 4162763 TDS403A15300 4156939 TDS413A15300 15,300 .6024 171 121 101 2,6 48 16 4162764 TDS403A15400 4156940 TDS413A15400 15,400 .6063 171 121 101 2,7 48 16 4162765 TDS403A15479 4156941 TDS413A15479 15,479 .6094 171 121 101 2,7 48 16 4162766 TDS403A15500 4156942 TDS413A15500 15,500 .6102 171 121 101 2,7 48 16 4162767 TDS403A15600 4156943 TDS413A15600 15,600 .6142 171 121 101 2,7 48 16 4162768 TDS403A15700 4156944 TDS413A15700 15,700 .6181 171 121 101 2,7 48 16 4162769 TDS403A15800 4156945 TDS413A15800 15,800 .6220 171 121 101 2,7 48 16 4162770 TDS403A15875 4156946 TDS413A15875 15,875 .6250 171 121 101 2,7 48 16 4162771 TDS403A15900 4156947 TDS413A15900 15,900 .6260 171 121 101 2,8 48 16 4162772 TDS403A16000 4156948 TDS413A16000 16,000 .6299 171 121 101 2,8 48 16 4162773 TDS403A16100 4156949 TDS413A16100 16,100 .6339 185 135 113 2,8 48 18 4162774 TDS403A16200 4156950 TDS413A16200 16,200 .6378 185 135 113 2,8 48 18 4162775 TDS403A16271 4156951 TDS413A16271 16,271 .6406 185 135 113 2,8 48 18 4162776 TDS403A16300 4156952 TDS413A16300 16,300 .6417 185 135 113 2,8 48 18 4162777 TDS403A16400 4156953 TDS413A16400 16,400 .6457 185 135 113 2,8 48 18 4162778 TDS403A16500 4156954 TDS413A16500 16,500 .6496 185 135 113 2,9 48 18 4162779 TDS403A16600 4156955 TDS413A16600 16,600 .6535 185 135 113 2,9 48 18 4162780 TDS403A16670 4156956 TDS413A16670 16,670 .6563 185 135 113 2,9 48 18 4162781 TDS403A16700 4156957 TDS413A16700 16,700 .6575 185 135 113 2,9 48 18 (continued) T72 widia.com Solid Carbide Drills
