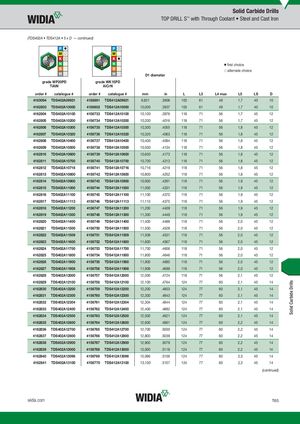

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS402A • TDS412A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163094 TDS402A09921 4158891 TDS412A09921 9,921 .3906 103 61 49 1,7 40 10 4162803 TDS402A10000 4156602 TDS412A10000 10,000 .3937 103 61 49 1,7 40 10 4162804 TDS402A10100 4156733 TDS412A10100 10,100 .3976 118 71 56 1,7 45 12 4162805 TDS402A10200 4156734 TDS412A10200 10,200 .4016 118 71 56 1,7 45 12 4162806 TDS402A10300 4156735 TDS412A10300 10,300 .4055 118 71 56 1,8 45 12 4162807 TDS402A10320 4156736 TDS412A10320 10,320 .4063 118 71 56 1,8 45 12 4162808 TDS402A10400 4156737 TDS412A10400 10,400 .4094 118 71 56 1,8 45 12 4162809 TDS402A10500 4156738 TDS412A10500 10,500 .4134 118 71 56 1,8 45 12 4162810 TDS402A10600 4156739 TDS412A10600 10,600 .4173 118 71 56 1,8 45 12 4162811 TDS402A10700 4156740 TDS412A10700 10,700 .4213 118 71 56 1,8 45 12 4162812 TDS402A10716 4156741 TDS412A10716 10,716 .4219 118 71 56 1,8 45 12 4162813 TDS402A10800 4156742 TDS412A10800 10,800 .4252 118 71 56 1,8 45 12 4162814 TDS402A10900 4156743 TDS412A10900 10,900 .4291 118 71 56 1,9 45 12 4162815 TDS402A11000 4156744 TDS412A11000 11,000 .4331 118 71 56 1,9 45 12 4162816 TDS402A11100 4156745 TDS412A11100 11,100 .4370 118 71 56 1,9 45 12 4162817 TDS402A11113 4156746 TDS412A11113 11,113 .4375 118 71 56 1,9 45 12 4162818 TDS402A11200 4156747 TDS412A11200 11,200 .4409 118 71 56 1,9 45 12 4162819 TDS402A11300 4156748 TDS412A11300 11,300 .4449 118 71 56 1,9 45 12 4162820 TDS402A11400 4156749 TDS412A11400 11,400 .4488 118 71 56 2,0 45 12 4162821 TDS402A11500 4156750 TDS412A11500 11,500 .4528 118 71 56 2,0 45 12 4162822 TDS402A11509 4156751 TDS412A11509 11,509 .4531 118 71 56 2,0 45 12 4162823 TDS402A11600 4156752 TDS412A11600 11,600 .4567 118 71 56 2,0 45 12 4162824 TDS402A11700 4156753 TDS412A11700 11,700 .4606 118 71 56 2,0 45 12 4162825 TDS402A11800 4156754 TDS412A11800 11,800 .4646 118 71 56 2,0 45 12 4162826 TDS402A11900 4156755 TDS412A11900 11,900 .4685 118 71 56 2,0 45 12 4162827 TDS402A11908 4156756 TDS412A11908 11,908 .4688 118 71 56 2,0 45 12 4162828 TDS402A12000 4156757 TDS412A12000 12,000 .4724 118 71 56 2,1 45 12 4162829 TDS402A12100 4156758 TDS412A12100 12,100 .4764 124 77 60 2,1 45 14 4162830 TDS402A12200 4156759 TDS412A12200 12,200 .4803 124 77 60 2,1 45 14 4162831 TDS402A12300 4156760 TDS412A12300 12,300 .4843 124 77 60 2,1 45 14 4162832 TDS402A12304 4156761 TDS412A12304 12,304 .4844 124 77 60 2,1 45 14 4162833 TDS402A12400 4156762 TDS412A12400 12,400 .4882 124 77 60 2,1 45 14 4162834 TDS402A12500 4156763 TDS412A12500 12,500 .4921 124 77 60 2,1 45 14 4162835 TDS402A12600 4156764 TDS412A12600 12,600 .4961 124 77 60 2,2 45 14 4162836 TDS402A12700 4156765 TDS412A12700 12,700 .5000 124 77 60 2,2 45 14 4162837 TDS402A12800 4156766 TDS412A12800 12,800 .5039 124 77 60 2,2 45 14 4162838 TDS402A12900 4156767 TDS412A12900 12,900 .5079 124 77 60 2,2 45 14 4162839 TDS402A13000 4156768 TDS412A13000 13,000 .5118 124 77 60 2,2 45 14 4162840 TDS402A13096 4156769 TDS412A13096 13,096 .5156 124 77 60 2,3 45 14 4162841 TDS402A13100 4156770 TDS412A13100 13,100 .5157 124 77 60 2,3 45 14 (continued) widia.com T65 Solid Carbide Drills
