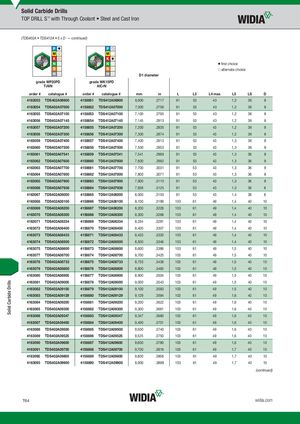

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS402A • TDS412A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163053 TDS402A06900 4158851 TDS412A06900 6,900 .2717 91 53 43 1,2 36 8 4163054 TDS402A07000 4158852 TDS412A07000 7,000 .2756 91 53 43 1,2 36 8 4163055 TDS402A07100 4158853 TDS412A07100 7,100 .2795 91 53 43 1,2 36 8 4163056 TDS402A07145 4158854 TDS412A07145 7,145 .2813 91 53 43 1,2 36 8 4163057 TDS402A07200 4158855 TDS412A07200 7,200 .2835 91 53 43 1,2 36 8 4163058 TDS402A07300 4158856 TDS412A07300 7,300 .2874 91 53 43 1,2 36 8 4163059 TDS402A07400 4158857 TDS412A07400 7,400 .2913 91 53 43 1,3 36 8 4163060 TDS402A07500 4158858 TDS412A07500 7,500 .2953 91 53 43 1,3 36 8 4163061 TDS402A07541 4158859 TDS412A07541 7,541 .2969 91 53 43 1,3 36 8 4163062 TDS402A07600 4158860 TDS412A07600 7,600 .2992 91 53 43 1,3 36 8 4163063 TDS402A07700 4158861 TDS412A07700 7,700 .3031 91 53 43 1,3 36 8 4163064 TDS402A07800 4158862 TDS412A07800 7,800 .3071 91 53 43 1,3 36 8 4163065 TDS402A07900 4158863 TDS412A07900 7,900 .3110 91 53 43 1,3 36 8 4163066 TDS402A07938 4158864 TDS412A07938 7,938 .3125 91 53 43 1,3 36 8 4163067 TDS402A08000 4158865 TDS412A08000 8,000 .3150 91 53 43 1,4 36 8 4163068 TDS402A08100 4158866 TDS412A08100 8,100 .3189 103 61 49 1,4 40 10 4163069 TDS402A08200 4158867 TDS412A08200 8,200 .3228 103 61 49 1,4 40 10 4163070 TDS402A08300 4158868 TDS412A08300 8,300 .3268 103 61 49 1,4 40 10 4163071 TDS402A08334 4158869 TDS412A08334 8,334 .3281 103 61 49 1,4 40 10 4163072 TDS402A08400 4158870 TDS412A08400 8,400 .3307 103 61 49 1,4 40 10 4163073 TDS402A08433 4158871 TDS412A08433 8,433 .3320 103 61 49 1,4 40 10 4163074 TDS402A08500 4158872 TDS412A08500 8,500 .3346 103 61 49 1,4 40 10 4163075 TDS402A08600 4158873 TDS412A08600 8,600 .3386 103 61 49 1,5 40 10 4163077 TDS402A08700 4158874 TDS412A08700 8,700 .3425 103 61 49 1,5 40 10 4163078 TDS402A08733 4158875 TDS412A08733 8,733 .3438 103 61 49 1,5 40 10 4163079 TDS402A08800 4158876 TDS412A08800 8,800 .3465 103 61 49 1,5 40 10 4163080 TDS402A08900 4158877 TDS412A08900 8,900 .3504 103 61 49 1,5 40 10 4163081 TDS402A09000 4158878 TDS412A09000 9,000 .3543 103 61 49 1,5 40 10 4163082 TDS402A09100 4158879 TDS412A09100 9,100 .3583 103 61 49 1,5 40 10 4163083 TDS402A09129 4158880 TDS412A09129 9,129 .3594 103 61 49 1,6 40 10 4163084 TDS402A09200 4158881 TDS412A09200 9,200 .3622 103 61 49 1,6 40 10 4163085 TDS402A09300 4158882 TDS412A09300 9,300 .3661 103 61 49 1,6 40 10 4163086 TDS402A09347 4158883 TDS412A09347 9,347 .3680 103 61 49 1,6 40 10 4163087 TDS402A09400 4158884 TDS412A09400 9,400 .3701 103 61 49 1,6 40 10 4163088 TDS402A09500 4158885 TDS412A09500 9,500 .3740 103 61 49 1,6 40 10 4163089 TDS402A09525 4158886 TDS412A09525 9,525 .3750 103 61 49 1,6 40 10 4163090 TDS402A09600 4158887 TDS412A09600 9,600 .3780 103 61 49 1,6 40 10 4163091 TDS402A09700 4158888 TDS412A09700 9,700 .3819 103 61 49 1,7 40 10 4163092 TDS402A09800 4158889 TDS412A09800 9,800 .3858 103 61 49 1,7 40 10 4163093 TDS402A09900 4158890 TDS412A09900 9,900 .3898 103 61 49 1,7 40 10 (continued) T64 widia.com Solid Carbide Drills
