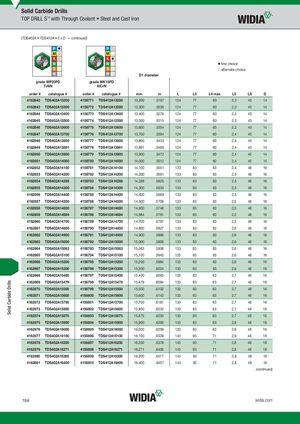

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS402A • TDS412A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162842 TDS402A13200 4156771 TDS412A13200 13,200 .5197 124 77 60 2,3 45 14 4162843 TDS402A13300 4156772 TDS412A13300 13,300 .5236 124 77 60 2,3 45 14 4162844 TDS402A13400 4156773 TDS412A13400 13,400 .5276 124 77 60 2,3 45 14 4162845 TDS402A13500 4156774 TDS412A13500 13,500 .5315 124 77 60 2,3 45 14 4162846 TDS402A13600 4156775 TDS412A13600 13,600 .5354 124 77 60 2,3 45 14 4162847 TDS402A13700 4156776 TDS412A13700 13,700 .5394 124 77 60 2,4 45 14 4162848 TDS402A13800 4156777 TDS412A13800 13,800 .5433 124 77 60 2,4 45 14 4162849 TDS402A13891 4156778 TDS412A13891 13,891 .5469 124 77 60 2,4 45 14 4162850 TDS402A13900 4156779 TDS412A13900 13,900 .5472 124 77 60 2,4 45 14 4162851 TDS402A14000 4156780 TDS412A14000 14,000 .5512 124 77 60 2,4 45 14 4162852 TDS402A14100 4156781 TDS412A14100 14,100 .5551 133 83 63 2,4 48 16 4162853 TDS402A14200 4156782 TDS412A14200 14,200 .5591 133 83 63 2,5 48 16 4162854 TDS402A14288 4156783 TDS412A14288 14,288 .5625 133 83 63 2,5 48 16 4162855 TDS402A14300 4156784 TDS412A14300 14,300 .5630 133 83 63 2,5 48 16 4162856 TDS402A14400 4156785 TDS412A14400 14,400 .5669 133 83 63 2,5 48 16 4162857 TDS402A14500 4156786 TDS412A14500 14,500 .5709 133 83 63 2,5 48 16 4162858 TDS402A14600 4156787 TDS412A14600 14,600 .5748 133 83 63 2,5 48 16 4162859 TDS402A14684 4156788 TDS412A14684 14,684 .5781 133 83 63 2,5 48 16 4162860 TDS402A14700 4156789 TDS412A14700 14,700 .5787 133 83 63 2,5 48 16 4162861 TDS402A14800 4156790 TDS412A14800 14,800 .5827 133 83 63 2,6 48 16 4162862 TDS402A14900 4156791 TDS412A14900 14,900 .5866 133 83 63 2,6 48 16 4162863 TDS402A15000 4156792 TDS412A15000 15,000 .5906 133 83 63 2,6 48 16 4162864 TDS402A15083 4156793 TDS412A15083 15,083 .5938 133 83 63 2,6 48 16 4162865 TDS402A15100 4156794 TDS412A15100 15,100 .5945 133 83 63 2,6 48 16 4162866 TDS402A15200 4156795 TDS412A15200 15,200 .5984 133 83 63 2,6 48 16 4162867 TDS402A15300 4156796 TDS412A15300 15,300 .6024 133 83 63 2,6 48 16 4162868 TDS402A15400 4156797 TDS412A15400 15,400 .6063 133 83 63 2,7 48 16 4162869 TDS402A15479 4156798 TDS412A15479 15,479 .6094 133 83 63 2,7 48 16 4162870 TDS402A15500 4156799 TDS412A15500 15,500 .6102 133 83 63 2,7 48 16 4162871 TDS402A15600 4156800 TDS412A15600 15,600 .6142 133 83 63 2,7 48 16 4162872 TDS402A15700 4156801 TDS412A15700 15,700 .6181 133 83 63 2,7 48 16 4162873 TDS402A15800 4156802 TDS412A15800 15,800 .6220 133 83 63 2,7 48 16 4162874 TDS402A15875 4156803 TDS412A15875 15,875 .6250 133 83 63 2,7 48 16 4162875 TDS402A15900 4156804 TDS412A15900 15,900 .6260 133 83 63 2,8 48 16 4162876 TDS402A16000 4156805 TDS412A16000 16,000 .6299 133 83 63 2,8 48 16 4162877 TDS402A16100 4156806 TDS412A16100 16,100 .6339 143 93 71 2,8 48 18 4162878 TDS402A16200 4156807 TDS412A16200 16,200 .6378 143 93 71 2,8 48 18 4162879 TDS402A16271 4156808 TDS412A16271 16,271 .6406 143 93 71 2,8 48 18 4162880 TDS402A16300 4156809 TDS412A16300 16,300 .6417 143 93 71 2,8 48 18 4162881 TDS402A16400 4156810 TDS412A16400 16,400 .6457 143 93 71 2,8 48 18 (continued) T66 widia.com Solid Carbide Drills
