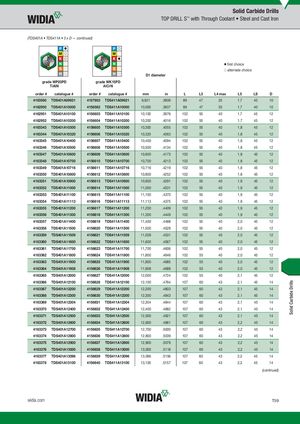

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS401A • TDS411A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163560 TDS401A09921 4157903 TDS411A09921 9,921 .3906 89 47 35 1,7 40 10 4162950 TDS401A10000 4156562 TDS411A10000 10,000 .3937 89 47 35 1,7 40 10 4162951 TDS401A10100 4156603 TDS411A10100 10,100 .3976 102 55 40 1,7 45 12 4162952 TDS401A10200 4156604 TDS411A10200 10,200 .4016 102 55 40 1,7 45 12 4163343 TDS401A10300 4156605 TDS411A10300 10,300 .4055 102 55 40 1,8 45 12 4163344 TDS401A10320 4156606 TDS411A10320 10,320 .4063 102 55 40 1,8 45 12 4163345 TDS401A10400 4156607 TDS411A10400 10,400 .4094 102 55 40 1,8 45 12 4163346 TDS401A10500 4156608 TDS411A10500 10,500 .4134 102 55 40 1,8 45 12 4163347 TDS401A10600 4156609 TDS411A10600 10,600 .4173 102 55 40 1,8 45 12 4163348 TDS401A10700 4156610 TDS411A10700 10,700 .4213 102 55 40 1,8 45 12 4163349 TDS401A10716 4156611 TDS411A10716 10,716 .4219 102 55 40 1,8 45 12 4163350 TDS401A10800 4156612 TDS411A10800 10,800 .4252 102 55 40 1,8 45 12 4163351 TDS401A10900 4156613 TDS411A10900 10,900 .4291 102 55 40 1,9 45 12 4163352 TDS401A11000 4156614 TDS411A11000 11,000 .4331 102 55 40 1,9 45 12 4163353 TDS401A11100 4156615 TDS411A11100 11,100 .4370 102 55 40 1,9 45 12 4163354 TDS401A11113 4156616 TDS411A11113 11,113 .4375 102 55 40 1,9 45 12 4163355 TDS401A11200 4156617 TDS411A11200 11,200 .4409 102 55 40 1,9 45 12 4163356 TDS401A11300 4156618 TDS411A11300 11,300 .4449 102 55 40 1,9 45 12 4163357 TDS401A11400 4156619 TDS411A11400 11,400 .4488 102 55 40 2,0 45 12 4163358 TDS401A11500 4156620 TDS411A11500 11,500 .4528 102 55 40 2,0 45 12 4163359 TDS401A11509 4156621 TDS411A11509 11,509 .4531 102 55 40 2,0 45 12 4163360 TDS401A11600 4156622 TDS411A11600 11,600 .4567 102 55 40 2,0 45 12 4163361 TDS401A11700 4156623 TDS411A11700 11,700 .4606 102 55 40 2,0 45 12 4163362 TDS401A11800 4156624 TDS411A11800 11,800 .4646 102 55 40 2,0 45 12 4163363 TDS401A11900 4156625 TDS411A11900 11,900 .4685 102 55 40 2,0 45 12 4163364 TDS401A11908 4156626 TDS411A11908 11,908 .4688 102 55 40 2,0 45 12 4163365 TDS401A12000 4156627 TDS411A12000 12,000 .4724 102 55 40 2,1 45 12 4163366 TDS401A12100 4156628 TDS411A12100 12,100 .4764 107 60 43 2,1 45 14 4163367 TDS401A12200 4156629 TDS411A12200 12,200 .4803 107 60 43 2,1 45 14 4163368 TDS401A12300 4156630 TDS411A12300 12,300 .4843 107 60 43 2,1 45 14 4163369 TDS401A12304 4156631 TDS411A12304 12,304 .4844 107 60 43 2,1 45 14 4163370 TDS401A12400 4156632 TDS411A12400 12,400 .4882 107 60 43 2,1 45 14 4163371 TDS401A12500 4156633 TDS411A12500 12,500 .4921 107 60 43 2,1 45 14 4163372 TDS401A12600 4156634 TDS411A12600 12,600 .4961 107 60 43 2,2 45 14 4163373 TDS401A12700 4156635 TDS411A12700 12,700 .5000 107 60 43 2,2 45 14 4163374 TDS401A12800 4156636 TDS411A12800 12,800 .5039 107 60 43 2,2 45 14 4163375 TDS401A12900 4156637 TDS411A12900 12,900 .5079 107 60 43 2,2 45 14 4163376 TDS401A13000 4156638 TDS411A13000 13,000 .5118 107 60 43 2,2 45 14 4163377 TDS401A13096 4156639 TDS411A13096 13,096 .5156 107 60 43 2,3 45 14 4163378 TDS401A13100 4156640 TDS411A13100 13,100 .5157 107 60 43 2,3 45 14 (continued) widia.com T59 Solid Carbide Drills
