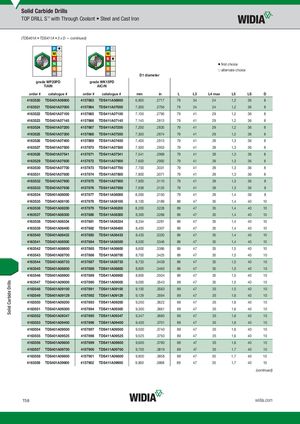

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS401A • TDS411A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163520 TDS401A06900 4157863 TDS411A06900 6,900 .2717 79 34 24 1,2 36 8 4163521 TDS401A07000 4157864 TDS411A07000 7,000 .2756 79 34 24 1,2 36 8 4163522 TDS401A07100 4157865 TDS411A07100 7,100 .2795 79 41 29 1,2 36 8 4163523 TDS401A07145 4157866 TDS411A07145 7,145 .2813 79 41 29 1,2 36 8 4163524 TDS401A07200 4157867 TDS411A07200 7,200 .2835 79 41 29 1,2 36 8 4163525 TDS401A07300 4157868 TDS411A07300 7,300 .2874 79 41 29 1,2 36 8 4163526 TDS401A07400 4157869 TDS411A07400 7,400 .2913 79 41 29 1,3 36 8 4163527 TDS401A07500 4157870 TDS411A07500 7,500 .2953 79 41 29 1,3 36 8 4163528 TDS401A07541 4157871 TDS411A07541 7,541 .2969 79 41 29 1,3 36 8 4163529 TDS401A07600 4157872 TDS411A07600 7,600 .2992 79 41 29 1,3 36 8 4163530 TDS401A07700 4157873 TDS411A07700 7,700 .3031 79 41 29 1,3 36 8 4163531 TDS401A07800 4157874 TDS411A07800 7,800 .3071 79 41 29 1,3 36 8 4163532 TDS401A07900 4157875 TDS411A07900 7,900 .3110 79 41 29 1,3 36 8 4163533 TDS401A07938 4157876 TDS411A07938 7,938 .3125 79 41 29 1,3 36 8 4163534 TDS401A08000 4157877 TDS411A08000 8,000 .3150 79 41 29 1,4 36 8 4163535 TDS401A08100 4157878 TDS411A08100 8,100 .3189 89 47 35 1,4 40 10 4163536 TDS401A08200 4157879 TDS411A08200 8,200 .3228 89 47 35 1,4 40 10 4163537 TDS401A08300 4157880 TDS411A08300 8,300 .3268 89 47 35 1,4 40 10 4163538 TDS401A08334 4157881 TDS411A08334 8,334 .3281 89 47 35 1,4 40 10 4163539 TDS401A08400 4157882 TDS411A08400 8,400 .3307 89 47 35 1,4 40 10 4163540 TDS401A08433 4157883 TDS411A08433 8,433 .3320 89 47 35 1,4 40 10 4163541 TDS401A08500 4157884 TDS411A08500 8,500 .3346 89 47 35 1,4 40 10 4163542 TDS401A08600 4157885 TDS411A08600 8,600 .3386 89 47 35 1,5 40 10 4163543 TDS401A08700 4157886 TDS411A08700 8,700 .3425 89 47 35 1,5 40 10 4163544 TDS401A08733 4157887 TDS411A08733 8,733 .3438 89 47 35 1,5 40 10 4163545 TDS401A08800 4157888 TDS411A08800 8,800 .3465 89 47 35 1,5 40 10 4163546 TDS401A08900 4157889 TDS411A08900 8,900 .3504 89 47 35 1,5 40 10 4163547 TDS401A09000 4157890 TDS411A09000 9,000 .3543 89 47 35 1,5 40 10 4163548 TDS401A09100 4157891 TDS411A09100 9,100 .3583 89 47 35 1,5 40 10 4163549 TDS401A09129 4157892 TDS411A09129 9,129 .3594 89 47 35 1,6 40 10 4163550 TDS401A09200 4157893 TDS411A09200 9,200 .3622 89 47 35 1,6 40 10 4163551 TDS401A09300 4157894 TDS411A09300 9,300 .3661 89 47 35 1,6 40 10 4163552 TDS401A09347 4157895 TDS411A09347 9,347 .3680 89 47 35 1,6 40 10 4163553 TDS401A09400 4157896 TDS411A09400 9,400 .3701 89 47 35 1,6 40 10 4163554 TDS401A09500 4157897 TDS411A09500 9,500 .3740 89 47 35 1,6 40 10 4163555 TDS401A09525 4157898 TDS411A09525 9,525 .3750 89 47 35 1,6 40 10 4163556 TDS401A09600 4157899 TDS411A09600 9,600 .3780 89 47 35 1,6 40 10 4163557 TDS401A09700 4157900 TDS411A09700 9,700 .3819 89 47 35 1,7 40 10 4163558 TDS401A09800 4157901 TDS411A09800 9,800 .3858 89 47 35 1,7 40 10 4163559 TDS401A09900 4157902 TDS411A09900 9,900 .3898 89 47 35 1,7 40 10 (continued) T58 widia.com Solid Carbide Drills
