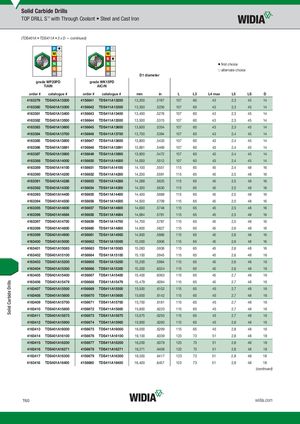

Solid Carbide Drills TOP DRILL S™ with Through Coolant • Steel and Cast Iron (TDS401A • TDS411A • 3 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4163379 TDS401A13200 4156641 TDS411A13200 13,200 .5197 107 60 43 2,3 45 14 4163380 TDS401A13300 4156642 TDS411A13300 13,300 .5236 107 60 43 2,3 45 14 4163381 TDS401A13400 4156643 TDS411A13400 13,400 .5276 107 60 43 2,3 45 14 4163382 TDS401A13500 4156644 TDS411A13500 13,500 .5315 107 60 43 2,3 45 14 4163383 TDS401A13600 4156645 TDS411A13600 13,600 .5354 107 60 43 2,3 45 14 4163384 TDS401A13700 4156646 TDS411A13700 13,700 .5394 107 60 43 2,4 45 14 4163385 TDS401A13800 4156647 TDS411A13800 13,800 .5433 107 60 43 2,4 45 14 4163386 TDS401A13891 4156648 TDS411A13891 13,891 .5469 107 60 43 2,4 45 14 4163387 TDS401A13900 4156649 TDS411A13900 13,900 .5472 107 60 43 2,4 45 14 4163388 TDS401A14000 4156650 TDS411A14000 14,000 .5512 107 60 43 2,4 45 14 4163389 TDS401A14100 4156651 TDS411A14100 14,100 .5551 115 65 45 2,4 48 16 4163390 TDS401A14200 4156652 TDS411A14200 14,200 .5591 115 65 45 2,5 48 16 4163391 TDS401A14288 4156653 TDS411A14288 14,288 .5625 115 65 45 2,5 48 16 4163392 TDS401A14300 4156654 TDS411A14300 14,300 .5630 115 65 45 2,5 48 16 4163393 TDS401A14400 4156655 TDS411A14400 14,400 .5669 115 65 45 2,5 48 16 4163394 TDS401A14500 4156656 TDS411A14500 14,500 .5709 115 65 45 2,5 48 16 4163395 TDS401A14600 4156657 TDS411A14600 14,600 .5748 115 65 45 2,5 48 16 4163396 TDS401A14684 4156658 TDS411A14684 14,684 .5781 115 65 45 2,5 48 16 4163397 TDS401A14700 4156659 TDS411A14700 14,700 .5787 115 65 45 2,5 48 16 4163398 TDS401A14800 4156660 TDS411A14800 14,800 .5827 115 65 45 2,6 48 16 4163399 TDS401A14900 4156661 TDS411A14900 14,900 .5866 115 65 45 2,6 48 16 4163400 TDS401A15000 4156662 TDS411A15000 15,000 .5906 115 65 45 2,6 48 16 4163401 TDS401A15083 4156663 TDS411A15083 15,083 .5938 115 65 45 2,6 48 16 4163402 TDS401A15100 4156664 TDS411A15100 15,100 .5945 115 65 45 2,6 48 16 4163403 TDS401A15200 4156665 TDS411A15200 15,200 .5984 115 65 45 2,6 48 16 4163404 TDS401A15300 4156666 TDS411A15300 15,300 .6024 115 65 45 2,6 48 16 4163405 TDS401A15400 4156667 TDS411A15400 15,400 .6063 115 65 45 2,7 48 16 4163406 TDS401A15479 4156668 TDS411A15479 15,479 .6094 115 65 45 2,7 48 16 4163407 TDS401A15500 4156669 TDS411A15500 15,500 .6102 115 65 45 2,7 48 16 4163408 TDS401A15600 4156670 TDS411A15600 15,600 .6142 115 65 45 2,7 48 16 4163409 TDS401A15700 4156671 TDS411A15700 15,700 .6181 115 65 45 2,7 48 16 4163410 TDS401A15800 4156672 TDS411A15800 15,800 .6220 115 65 45 2,7 48 16 4163411 TDS401A15875 4156673 TDS411A15875 15,875 .6250 115 65 45 2,7 48 16 4163412 TDS401A15900 4156674 TDS411A15900 15,900 .6260 115 65 45 2,8 48 16 4163413 TDS401A16000 4156675 TDS411A16000 16,000 .6299 115 65 45 2,8 48 16 4163414 TDS401A16100 4156676 TDS411A16100 16,100 .6339 123 73 51 2,8 48 18 4163415 TDS401A16200 4156677 TDS411A16200 16,200 .6378 123 73 51 2,8 48 18 4163416 TDS401A16271 4156678 TDS411A16271 16,271 .6406 123 73 51 2,8 48 18 4163417 TDS401A16300 4156679 TDS411A16300 16,300 .6417 123 73 51 2,8 48 18 4163418 TDS401A16400 4156680 TDS411A16400 16,400 .6457 123 73 51 2,8 48 18 (continued) T60 widia.com Solid Carbide Drills
