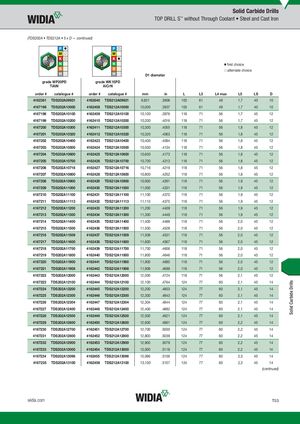

Solid Carbide Drills TOP DRILL S™ without Through Coolant • Steel and Cast Iron (TDS202A • TDS212A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162381 TDS202A09921 4162640 TDS212A09921 9,921 .3906 103 61 49 1,7 40 10 4167196 TDS202A10000 4162408 TDS212A10000 10,000 .3937 103 61 49 1,7 40 10 4167198 TDS202A10100 4162409 TDS212A10100 10,100 .3976 118 71 56 1,7 45 12 4167199 TDS202A10200 4162410 TDS212A10200 10,200 .4016 118 71 56 1,7 45 12 4167200 TDS202A10300 4162411 TDS212A10300 10,300 .4055 118 71 56 1,8 45 12 4167201 TDS202A10320 4162412 TDS212A10320 10,320 .4063 118 71 56 1,8 45 12 4167202 TDS202A10400 4162423 TDS212A10400 10,400 .4094 118 71 56 1,8 45 12 4167203 TDS202A10500 4162424 TDS212A10500 10,500 .4134 118 71 56 1,8 45 12 4167204 TDS202A10600 4162425 TDS212A10600 10,600 .4173 118 71 56 1,8 45 12 4167205 TDS202A10700 4162426 TDS212A10700 10,700 .4213 118 71 56 1,8 45 12 4167206 TDS202A10716 4162427 TDS212A10716 10,716 .4219 118 71 56 1,8 45 12 4167207 TDS202A10800 4162428 TDS212A10800 10,800 .4252 118 71 56 1,8 45 12 4167208 TDS202A10900 4162429 TDS212A10900 10,900 .4291 118 71 56 1,9 45 12 4167209 TDS202A11000 4162430 TDS212A11000 11,000 .4331 118 71 56 1,9 45 12 4167210 TDS202A11100 4162431 TDS212A11100 11,100 .4370 118 71 56 1,9 45 12 4167211 TDS202A11113 4162432 TDS212A11113 11,113 .4375 118 71 56 1,9 45 12 4167212 TDS202A11200 4162433 TDS212A11200 11,200 .4409 118 71 56 1,9 45 12 4167213 TDS202A11300 4162434 TDS212A11300 11,300 .4449 118 71 56 1,9 45 12 4167214 TDS202A11400 4162435 TDS212A11400 11,400 .4488 118 71 56 2,0 45 12 4167215 TDS202A11500 4162436 TDS212A11500 11,500 .4528 118 71 56 2,0 45 12 4167216 TDS202A11509 4162437 TDS212A11509 11,509 .4531 118 71 56 2,0 45 12 4167217 TDS202A11600 4162438 TDS212A11600 11,600 .4567 118 71 56 2,0 45 12 4167218 TDS202A11700 4162439 TDS212A11700 11,700 .4606 118 71 56 2,0 45 12 4167219 TDS202A11800 4162440 TDS212A11800 11,800 .4646 118 71 56 2,0 45 12 4167220 TDS202A11900 4162441 TDS212A11900 11,900 .4685 118 71 56 2,0 45 12 4167221 TDS202A11908 4162442 TDS212A11908 11,908 .4688 118 71 56 2,0 45 12 4167222 TDS202A12000 4162443 TDS212A12000 12,000 .4724 118 71 56 2,1 45 12 4167223 TDS202A12100 4162444 TDS212A12100 12,100 .4764 124 77 60 2,1 45 14 4167224 TDS202A12200 4162445 TDS212A12200 12,200 .4803 124 77 60 2,1 45 14 4167225 TDS202A12300 4162446 TDS212A12300 12,300 .4843 124 77 60 2,1 45 14 4167226 TDS202A12304 4162447 TDS212A12304 12,304 .4844 124 77 60 2,1 45 14 4167227 TDS202A12400 4162448 TDS212A12400 12,400 .4882 124 77 60 2,1 45 14 4167228 TDS202A12500 4162449 TDS212A12500 12,500 .4921 124 77 60 2,1 45 14 4167229 TDS202A12600 4162450 TDS212A12600 12,600 .4961 124 77 60 2,2 45 14 4167230 TDS202A12700 4162451 TDS212A12700 12,700 .5000 124 77 60 2,2 45 14 4167231 TDS202A12800 4162452 TDS212A12800 12,800 .5039 124 77 60 2,2 45 14 4167232 TDS202A12900 4162453 TDS212A12900 12,900 .5079 124 77 60 2,2 45 14 4167233 TDS202A13000 4162454 TDS212A13000 13,000 .5118 124 77 60 2,2 45 14 4167234 TDS202A13096 4162455 TDS212A13096 13,096 .5156 124 77 60 2,3 45 14 4167235 TDS202A13100 4162456 TDS212A13100 13,100 .5157 124 77 60 2,3 45 14 (continued) widia.com T53 Solid Carbide Drills
