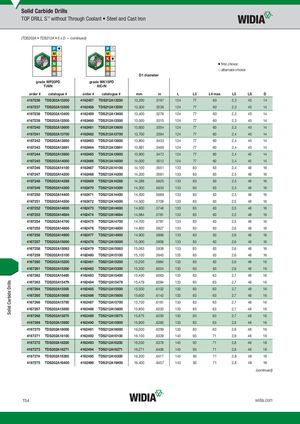

Solid Carbide Drills TOP DRILL S™ without Through Coolant • Steel and Cast Iron (TDS202A • TDS212A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4167236 TDS202A13200 4162457 TDS212A13200 13,200 .5197 124 77 60 2,3 45 14 4167237 TDS202A13300 4162458 TDS212A13300 13,300 .5236 124 77 60 2,3 45 14 4167238 TDS202A13400 4162459 TDS212A13400 13,400 .5276 124 77 60 2,3 45 14 4167239 TDS202A13500 4162460 TDS212A13500 13,500 .5315 124 77 60 2,3 45 14 4167240 TDS202A13600 4162461 TDS212A13600 13,600 .5354 124 77 60 2,3 45 14 4167241 TDS202A13700 4162462 TDS212A13700 13,700 .5394 124 77 60 2,4 45 14 4167242 TDS202A13800 4162463 TDS212A13800 13,800 .5433 124 77 60 2,4 45 14 4167243 TDS202A13891 4162464 TDS212A13891 13,891 .5469 124 77 60 2,4 45 14 4167244 TDS202A13900 4162465 TDS212A13900 13,900 .5472 124 77 60 2,4 45 14 4167245 TDS202A14000 4162466 TDS212A14000 14,000 .5512 124 77 60 2,4 45 14 4167246 TDS202A14100 4162467 TDS212A14100 14,100 .5551 133 83 63 2,4 48 16 4167247 TDS202A14200 4162468 TDS212A14200 14,200 .5591 133 83 63 2,5 48 16 4167248 TDS202A14288 4162469 TDS212A14288 14,288 .5625 133 83 63 2,5 48 16 4167249 TDS202A14300 4162470 TDS212A14300 14,300 .5630 133 83 63 2,5 48 16 4167250 TDS202A14400 4162471 TDS212A14400 14,400 .5669 133 83 63 2,5 48 16 4167251 TDS202A14500 4162472 TDS212A14500 14,500 .5709 133 83 63 2,5 48 16 4167252 TDS202A14600 4162473 TDS212A14600 14,600 .5748 133 83 63 2,5 48 16 4167253 TDS202A14684 4162474 TDS212A14684 14,684 .5781 133 83 63 2,5 48 16 4167254 TDS202A14700 4162475 TDS212A14700 14,700 .5787 133 83 63 2,5 48 16 4167255 TDS202A14800 4162476 TDS212A14800 14,800 .5827 133 83 63 2,6 48 16 4167256 TDS202A14900 4162477 TDS212A14900 14,900 .5866 133 83 63 2,6 48 16 4167257 TDS202A15000 4162478 TDS212A15000 15,000 .5906 133 83 63 2,6 48 16 4167258 TDS202A15083 4162479 TDS212A15083 15,083 .5938 133 83 63 2,6 48 16 4167259 TDS202A15100 4162480 TDS212A15100 15,100 .5945 133 83 63 2,6 48 16 4167260 TDS202A15200 4162481 TDS212A15200 15,200 .5984 133 83 63 2,6 48 16 4167261 TDS202A15300 4162482 TDS212A15300 15,300 .6024 133 83 63 2,6 48 16 4167262 TDS202A15400 4162483 TDS212A15400 15,400 .6063 133 83 63 2,7 48 16 4167263 TDS202A15479 4162484 TDS212A15479 15,479 .6094 133 83 63 2,7 48 16 4167264 TDS202A15500 4162485 TDS212A15500 15,500 .6102 133 83 63 2,7 48 16 4167265 TDS202A15600 4162486 TDS212A15600 15,600 .6142 133 83 63 2,7 48 16 4167266 TDS202A15700 4162487 TDS212A15700 15,700 .6181 133 83 63 2,7 48 16 4167267 TDS202A15800 4162488 TDS212A15800 15,800 .6220 133 83 63 2,7 48 16 4167268 TDS202A15875 4162489 TDS212A15875 15,875 .6250 133 83 63 2,7 48 16 4167269 TDS202A15900 4162490 TDS212A15900 15,900 .6260 133 83 63 2,8 48 16 4167270 TDS202A16000 4162491 TDS212A16000 16,000 .6299 133 83 63 2,8 48 16 4167271 TDS202A16100 4162492 TDS212A16100 16,100 .6339 143 93 71 2,8 48 18 4167272 TDS202A16200 4162493 TDS212A16200 16,200 .6378 143 93 71 2,8 48 18 4167273 TDS202A16271 4162494 TDS212A16271 16,271 .6406 143 93 71 2,8 48 18 4167274 TDS202A16300 4162495 TDS212A16300 16,300 .6417 143 93 71 2,8 48 18 4167275 TDS202A16400 4162496 TDS212A16400 16,400 .6457 143 93 71 2,8 48 18 (continued) T54 widia.com Solid Carbide Drills
