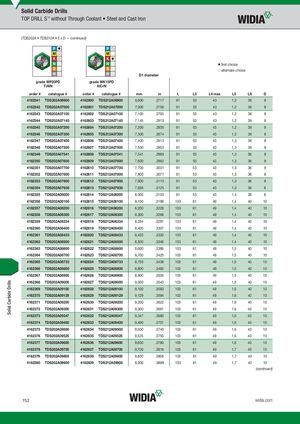

Solid Carbide Drills TOP DRILL S™ without Through Coolant • Steel and Cast Iron (TDS202A • TDS212A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162341 TDS202A06900 4162600 TDS212A06900 6,900 .2717 91 53 43 1,2 36 8 4162342 TDS202A07000 4162601 TDS212A07000 7,000 .2756 91 53 43 1,2 36 8 4162343 TDS202A07100 4162602 TDS212A07100 7,100 .2795 91 53 43 1,2 36 8 4162344 TDS202A07145 4162603 TDS212A07145 7,145 .2813 91 53 43 1,2 36 8 4162345 TDS202A07200 4162604 TDS212A07200 7,200 .2835 91 53 43 1,2 36 8 4162346 TDS202A07300 4162605 TDS212A07300 7,300 .2874 91 53 43 1,2 36 8 4162347 TDS202A07400 4162606 TDS212A07400 7,400 .2913 91 53 43 1,3 36 8 4162348 TDS202A07500 4162607 TDS212A07500 7,500 .2953 91 53 43 1,3 36 8 4162349 TDS202A07541 4162608 TDS212A07541 7,541 .2969 91 53 43 1,3 36 8 4162350 TDS202A07600 4162609 TDS212A07600 7,600 .2992 91 53 43 1,3 36 8 4162351 TDS202A07700 4162610 TDS212A07700 7,700 .3031 91 53 43 1,3 36 8 4162352 TDS202A07800 4162611 TDS212A07800 7,800 .3071 91 53 43 1,3 36 8 4162353 TDS202A07900 4162612 TDS212A07900 7,900 .3110 91 53 43 1,3 36 8 4162354 TDS202A07938 4162613 TDS212A07938 7,938 .3125 91 53 43 1,3 36 8 4162355 TDS202A08000 4162614 TDS212A08000 8,000 .3150 91 53 43 1,4 36 8 4162356 TDS202A08100 4162615 TDS212A08100 8,100 .3189 103 61 49 1,4 40 10 4162357 TDS202A08200 4162616 TDS212A08200 8,200 .3228 103 61 49 1,4 40 10 4162358 TDS202A08300 4162617 TDS212A08300 8,300 .3268 103 61 49 1,4 40 10 4162359 TDS202A08334 4162618 TDS212A08334 8,334 .3281 103 61 49 1,4 40 10 4162360 TDS202A08400 4162619 TDS212A08400 8,400 .3307 103 61 49 1,4 40 10 4162361 TDS202A08433 4162620 TDS212A08433 8,433 .3320 103 61 49 1,4 40 10 4162362 TDS202A08500 4162621 TDS212A08500 8,500 .3346 103 61 49 1,4 40 10 4162363 TDS202A08600 4162622 TDS212A08600 8,600 .3386 103 61 49 1,5 40 10 4162364 TDS202A08700 4162623 TDS212A08700 8,700 .3425 103 61 49 1,5 40 10 4162365 TDS202A08733 4162624 TDS212A08733 8,733 .3438 103 61 49 1,5 40 10 4162366 TDS202A08800 4162625 TDS212A08800 8,800 .3465 103 61 49 1,5 40 10 4162367 TDS202A08900 4162626 TDS212A08900 8,900 .3504 103 61 49 1,5 40 10 4162368 TDS202A09000 4162627 TDS212A09000 9,000 .3543 103 61 49 1,5 40 10 4162369 TDS202A09100 4162628 TDS212A09100 9,100 .3583 103 61 49 1,5 40 10 4162370 TDS202A09129 4162629 TDS212A09129 9,129 .3594 103 61 49 1,6 40 10 4162371 TDS202A09200 4162630 TDS212A09200 9,200 .3622 103 61 49 1,6 40 10 4162372 TDS202A09300 4162631 TDS212A09300 9,300 .3661 103 61 49 1,6 40 10 4162373 TDS202A09347 4162632 TDS212A09347 9,347 .3680 103 61 49 1,6 40 10 4162374 TDS202A09400 4162633 TDS212A09400 9,400 .3701 103 61 49 1,6 40 10 4162375 TDS202A09500 4162634 TDS212A09500 9,500 .3740 103 61 49 1,6 40 10 4162376 TDS202A09525 4162635 TDS212A09525 9,525 .3750 103 61 49 1,6 40 10 4162377 TDS202A09600 4162636 TDS212A09600 9,600 .3780 103 61 49 1,6 40 10 4162378 TDS202A09700 4162637 TDS212A09700 9,700 .3819 103 61 49 1,7 40 10 4162379 TDS202A09800 4162638 TDS212A09800 9,800 .3858 103 61 49 1,7 40 10 4162380 TDS202A09900 4162639 TDS212A09900 9,900 .3898 103 61 49 1,7 40 10 (continued) T52 widia.com Solid Carbide Drills
