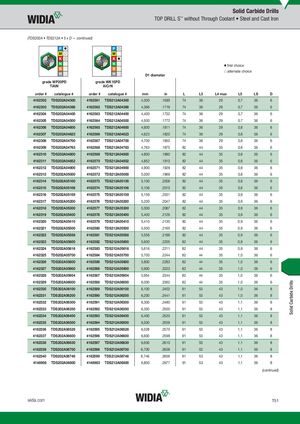

Solid Carbide Drills TOP DRILL S™ without Through Coolant • Steel and Cast Iron (TDS202A • TDS212A • 5 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdePW20PP2D0PD graWdeKW15KP1D5PD TiAlN AlCrN order # catalogue # order # catalogue # mm in L L3 L4 max L5 LS D 4162302 TDS202A04300 4162561 TDS212A04300 4,300 .1693 74 36 29 0,7 36 6 4162303 TDS202A04366 4162562 TDS212A04366 4,366 .1719 74 36 29 0,7 36 6 4162304 TDS202A04400 4162563 TDS212A04400 4,400 .1732 74 36 29 0,7 36 6 4162305 TDS202A04500 4162564 TDS212A04500 4,500 .1772 74 36 29 0,7 36 6 4162306 TDS202A04600 4162565 TDS212A04600 4,600 .1811 74 36 29 0,8 36 6 4162307 TDS202A04623 4162566 TDS212A04623 4,623 .1820 74 36 29 0,8 36 6 4162308 TDS202A04700 4162567 TDS212A04700 4,700 .1850 74 36 29 0,8 36 6 4162309 TDS202A04763 4162568 TDS212A04763 4,763 .1875 82 44 35 0,8 36 6 4162310 TDS202A04800 4162569 TDS212A04800 4,800 .1890 82 44 35 0,8 36 6 4162311 TDS202A04852 4162570 TDS212A04852 4,852 .1910 82 44 35 0,8 36 6 4162312 TDS202A04900 4162571 TDS212A04900 4,900 .1929 82 44 35 0,8 36 6 4162313 TDS202A05000 4162572 TDS212A05000 5,000 .1969 82 44 35 0,8 36 6 4162314 TDS202A05100 4162573 TDS212A05100 5,100 .2008 82 44 35 0,8 36 6 4162315 TDS202A05106 4162574 TDS212A05106 5,106 .2010 82 44 35 0,8 36 6 4162316 TDS202A05159 4162575 TDS212A05159 5,159 .2031 82 44 35 0,9 36 6 4162317 TDS202A05200 4162576 TDS212A05200 5,200 .2047 82 44 35 0,9 36 6 4162318 TDS202A05300 4162577 TDS212A05300 5,300 .2087 82 44 35 0,9 36 6 4162319 TDS202A05400 4162578 TDS212A05400 5,400 .2126 82 44 35 0,9 36 6 4162320 TDS202A05410 4162579 TDS212A05410 5,410 .2130 82 44 35 0,9 36 6 4162321 TDS202A05500 4162580 TDS212A05500 5,500 .2165 82 44 35 0,9 36 6 4162322 TDS202A05558 4162581 TDS212A05558 5,558 .2188 82 44 35 0,9 36 6 4162323 TDS202A05600 4162582 TDS212A05600 5,600 .2205 82 44 35 0,9 36 6 4162324 TDS202A05616 4162583 TDS212A05616 5,616 .2211 82 44 35 0,9 36 6 4162325 TDS202A05700 4162584 TDS212A05700 5,700 .2244 82 44 35 1,0 36 6 4162326 TDS202A05800 4162585 TDS212A05800 5,800 .2283 82 44 35 1,0 36 6 4162327 TDS202A05900 4162586 TDS212A05900 5,900 .2323 82 44 35 1,0 36 6 4162328 TDS202A05954 4162587 TDS212A05954 5,954 .2344 82 44 35 1,0 36 6 4162329 TDS202A06000 4162588 TDS212A06000 6,000 .2362 82 44 35 1,0 36 6 4162330 TDS202A06100 4162589 TDS212A06100 6,100 .2402 91 53 43 1,0 36 8 4162331 TDS202A06200 4162590 TDS212A06200 6,200 .2441 91 53 43 1,0 36 8 4162332 TDS202A06300 4162591 TDS212A06300 6,300 .2480 91 53 43 1,1 36 8 4162333 TDS202A06350 4162592 TDS212A06350 6,350 .2500 91 53 43 1,1 36 8 4162334 TDS202A06400 4162593 TDS212A06400 6,400 .2520 91 53 43 1,1 36 8 4162335 TDS202A06500 4162594 TDS212A06500 6,500 .2559 91 53 43 1,1 36 8 4162336 TDS202A06528 4162595 TDS212A06528 6,528 .2570 91 53 43 1,1 36 8 4162337 TDS202A06600 4162596 TDS212A06600 6,600 .2598 91 53 43 1,1 36 8 4162338 TDS202A06630 4162597 TDS212A06630 6,630 .2610 91 53 43 1,1 36 8 4162339 TDS202A06700 4162598 TDS212A06700 6,700 .2638 91 53 43 1,1 36 8 4162340 TDS202A06746 4162599 TDS212A06746 6,746 .2656 91 53 43 1,1 36 8 4148908 TDS202A06800 4148983 TDS212A06800 6,800 .2677 91 53 43 1,1 36 8 (continued) widia.com T51 Solid Carbide Drills
