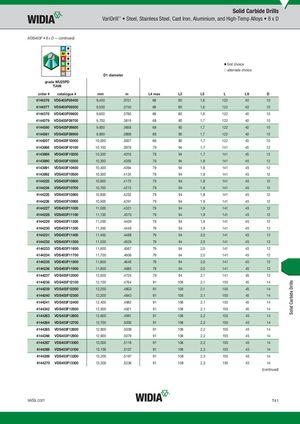

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403F • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4144376 VDS403F09400 9,400 .3701 68 80 1,6 122 40 10 4144377 VDS403F09500 9,500 .3740 68 80 1,6 122 40 10 4144378 VDS403F09600 9,600 .3780 68 80 1,6 122 40 10 4144379 VDS403F09700 9,700 .3819 68 80 1,7 122 40 10 4144380 VDS403F09800 9,800 .3858 68 80 1,7 122 40 10 4144381 VDS403F09900 9,900 .3898 68 80 1,7 122 40 10 4144207 VDS403F10000 10,000 .3937 68 80 1,7 122 40 10 4143888 VDS403F10100 10,100 .3976 79 94 1,7 141 45 12 4143889 VDS403F10200 10,200 .4016 79 94 1,7 141 45 12 4143890 VDS403F10300 10,300 .4055 79 94 1,8 141 45 12 4143891 VDS403F10400 10,400 .4094 79 94 1,8 141 45 12 4143892 VDS403F10500 10,500 .4134 79 94 1,8 141 45 12 4144223 VDS403F10600 10,600 .4173 79 94 1,8 141 45 12 4144224 VDS403F10700 10,700 .4213 79 94 1,8 141 45 12 4144225 VDS403F10800 10,800 .4252 79 94 1,8 141 45 12 4144226 VDS403F10900 10,900 .4291 79 94 1,9 141 45 12 4144227 VDS403F11000 11,000 .4331 79 94 1,9 141 45 12 4144228 VDS403F11100 11,100 .4370 79 94 1,9 141 45 12 4144229 VDS403F11200 11,200 .4409 79 94 1,9 141 45 12 4144230 VDS403F11300 11,300 .4449 79 94 1,9 141 45 12 4144231 VDS403F11400 11,400 .4488 79 94 2,0 141 45 12 4144232 VDS403F11500 11,500 .4528 79 94 2,0 141 45 12 4144233 VDS403F11600 11,600 .4567 79 94 2,0 141 45 12 4144234 VDS403F11700 11,700 .4606 79 94 2,0 141 45 12 4144235 VDS403F11800 11,800 .4646 79 94 2,0 141 45 12 4144236 VDS403F11900 11,900 .4685 79 94 2,0 141 45 12 4144237 VDS403F12000 12,000 .4724 79 94 2,1 141 45 12 4144238 VDS403F12100 12,100 .4764 91 108 2,1 155 45 14 4144239 VDS403F12200 12,200 .4803 91 108 2,1 155 45 14 4144240 VDS403F12300 12,300 .4843 91 108 2,1 155 45 14 4144241 VDS403F12400 12,400 .4882 91 108 2,1 155 45 14 4144242 VDS403F12500 12,500 .4921 91 108 2,1 155 45 14 4144263 VDS403F12600 12,600 .4961 91 108 2,2 155 45 14 4144264 VDS403F12700 12,700 .5000 91 108 2,2 155 45 14 4144265 VDS403F12800 12,800 .5039 91 108 2,2 155 45 14 4144266 VDS403F12900 12,900 .5079 91 108 2,2 155 45 14 4144267 VDS403F13000 13,000 .5118 91 108 2,2 155 45 14 4144268 VDS403F13100 13,100 .5157 91 108 2,3 155 45 14 4144269 VDS403F13200 13,200 .5197 91 108 2,3 155 45 14 4144270 VDS403F13300 13,300 .5236 91 108 2,3 155 45 14 (continued) widia.com T41 Solid Carbide Drills
