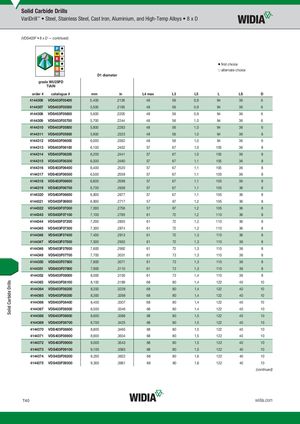

Solid Carbide Drills VariDrill™ • Steel, Stainless Steel, Cast Iron, Aluminium, and High-Temp Alloys • 8 x D (VDS403F • 8 x D — continued) ⅷ first choice ࠗ alternate choice D1 diameter graWdeUW25UP2D5PD TiAlN order # catalogue # mm in L4 max L3 L5 L LS D 4144306 VDS403F05400 5,400 .2126 48 56 0,9 94 36 6 4144307 VDS403F05500 5,500 .2165 48 56 0,9 94 36 6 4144308 VDS403F05600 5,600 .2205 48 56 0,9 94 36 6 4144309 VDS403F05700 5,700 .2244 48 56 1,0 94 36 6 4144310 VDS403F05800 5,800 .2283 48 56 1,0 94 36 6 4144311 VDS403F05900 5,900 .2323 48 56 1,0 94 36 6 4144312 VDS403F06000 6,000 .2362 48 56 1,0 94 36 6 4144313 VDS403F06100 6,100 .2402 57 67 1,0 105 36 8 4144314 VDS403F06200 6,200 .2441 57 67 1,0 105 36 8 4144315 VDS403F06300 6,300 .2480 57 67 1,1 105 36 8 4144316 VDS403F06400 6,400 .2520 57 67 1,1 105 36 8 4144317 VDS403F06500 6,500 .2559 57 67 1,1 105 36 8 4144318 VDS403F06600 6,600 .2598 57 67 1,1 105 36 8 4144319 VDS403F06700 6,700 .2638 57 67 1,1 105 36 8 4144320 VDS403F06800 6,800 .2677 57 67 1,1 105 36 8 4144321 VDS403F06900 6,900 .2717 57 67 1,2 105 36 8 4144322 VDS403F07000 7,000 .2756 57 67 1,2 105 36 8 4144343 VDS403F07100 7,100 .2795 61 72 1,2 110 36 8 4144344 VDS403F07200 7,200 .2835 61 72 1,2 110 36 8 4144345 VDS403F07300 7,300 .2874 61 72 1,2 110 36 8 4144346 VDS403F07400 7,400 .2913 61 72 1,3 110 36 8 4144347 VDS403F07500 7,500 .2953 61 72 1,3 110 36 8 4144348 VDS403F07600 7,600 .2992 61 72 1,3 110 36 8 4144349 VDS403F07700 7,700 .3031 61 72 1,3 110 36 8 4144350 VDS403F07800 7,800 .3071 61 72 1,3 110 36 8 4144351 VDS403F07900 7,900 .3110 61 72 1,3 110 36 8 4144352 VDS403F08000 8,000 .3150 61 72 1,4 110 36 8 4144363 VDS403F08100 8,100 .3189 68 80 1,4 122 40 10 4144364 VDS403F08200 8,200 .3228 68 80 1,4 122 40 10 4144365 VDS403F08300 8,300 .3268 68 80 1,4 122 40 10 4144366 VDS403F08400 8,400 .3307 68 80 1,4 122 40 10 4144367 VDS403F08500 8,500 .3346 68 80 1,4 122 40 10 4144368 VDS403F08600 8,600 .3386 68 80 1,5 122 40 10 4144369 VDS403F08700 8,700 .3425 68 80 1,5 122 40 10 4144370 VDS403F08800 8,800 .3465 68 80 1,5 122 40 10 4144371 VDS403F08900 8,900 .3504 68 80 1,5 122 40 10 4144372 VDS403F09000 9,000 .3543 68 80 1,5 122 40 10 4144373 VDS403F09100 9,100 .3583 68 80 1,5 122 40 10 4144374 VDS403F09200 9,200 .3622 68 80 1,6 122 40 10 4144375 VDS403F09300 9,300 .3661 68 80 1,6 122 40 10 (continued) T40 widia.com Solid Carbide Drills
